Description
The 2.25-inch sub-caliber rocket for aircraft was developed for training purposes. Initially, two types were designed to approximate the trajectory of the 3.5-inch and 5.0-inch rockets; however, only the Motor Mk 11 and the Head Mk 3 Mod 2 will be used in future training.
The Mk 1, a California Institute of Technology production, was issued until adopted and issued by Bureau of Ordnance as the Mk 3 Mod 2. The Mk 2, a California Institute of Technology production, was designed as a slow subcaliber rocket.

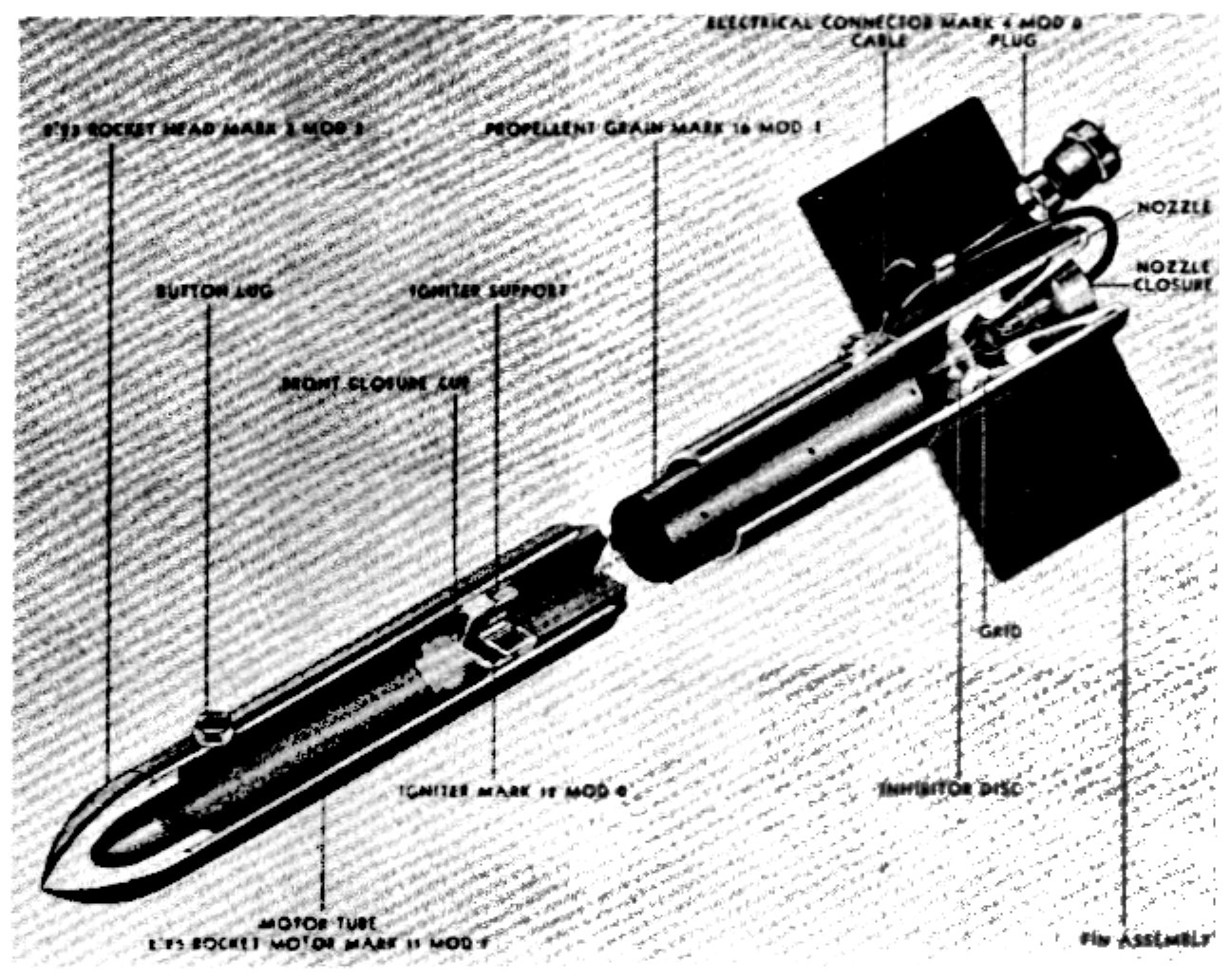

Motor Mk 11 and Head Mk 3 Mod 2: Overall length of the rocket is 29 inches. Two button type lugs are provided on the motor tube, spaced approximately 19 inches apart. Four fins are welded to the after end of the motor tube. The propellant is a cylindrical grain of ballistite weighing approximately 1-3/4 pounds.
Functioning
No information about functioning.
Hazardous Components
No information about hazardous components.
See Also
Rocket Motor, 2.25 inch, Mk 10
Rocket Motor, 2.25 inch, Mk 11
Rocket Motor, 2.25 inch, Mk 12
Rocket Motor, 2.25 inch, Mk 13
Source(s)
OP 1664, Volume 1 - US Explosive Ordnance (1947)
