Description

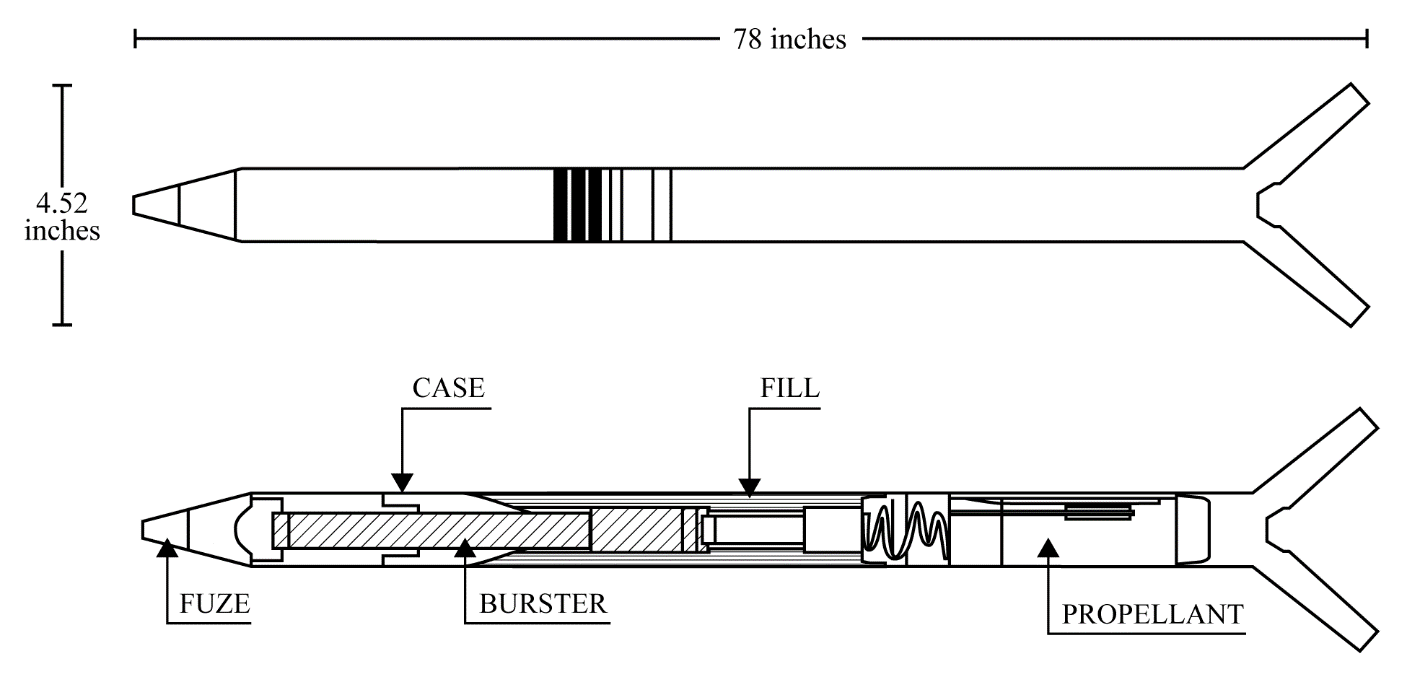

The cross section view shows the M61 Rocket in its unpackaged configuration. The warhead contains simulant EG, a point detonation fuze M417, an M36 auxiliary burster, and an M34 burster. The motor section consists of a double base propellant M28, an igniter assembly and a tail fin assembly. The rocket is packed in a fiberglass M441 firing and shipping tube. The M61 Rocket is identical to the M55 Rocket except for the fill. Ethylene glycol is used as a simulant for the agent fill. Its weight was adjusted to simulate the weight of the GB or VX fill. This rocket is used for training personnel in the techniques of loading, preparation for firing, and firing of rockets from the M91 multiple rocket launcher.
Functioning
No information about functioning.
Hazardous Components
No information about hazardous components.
See Also
Source(s)
Old Chemical Weapons and Related Materiel Reference Guide (2018)
Old Chemical Weapons Reference Guide (1998)
TM 9-1385-51, Ammunition (Conventional) for Explosive Ordnance Disposal (1967)
