Description

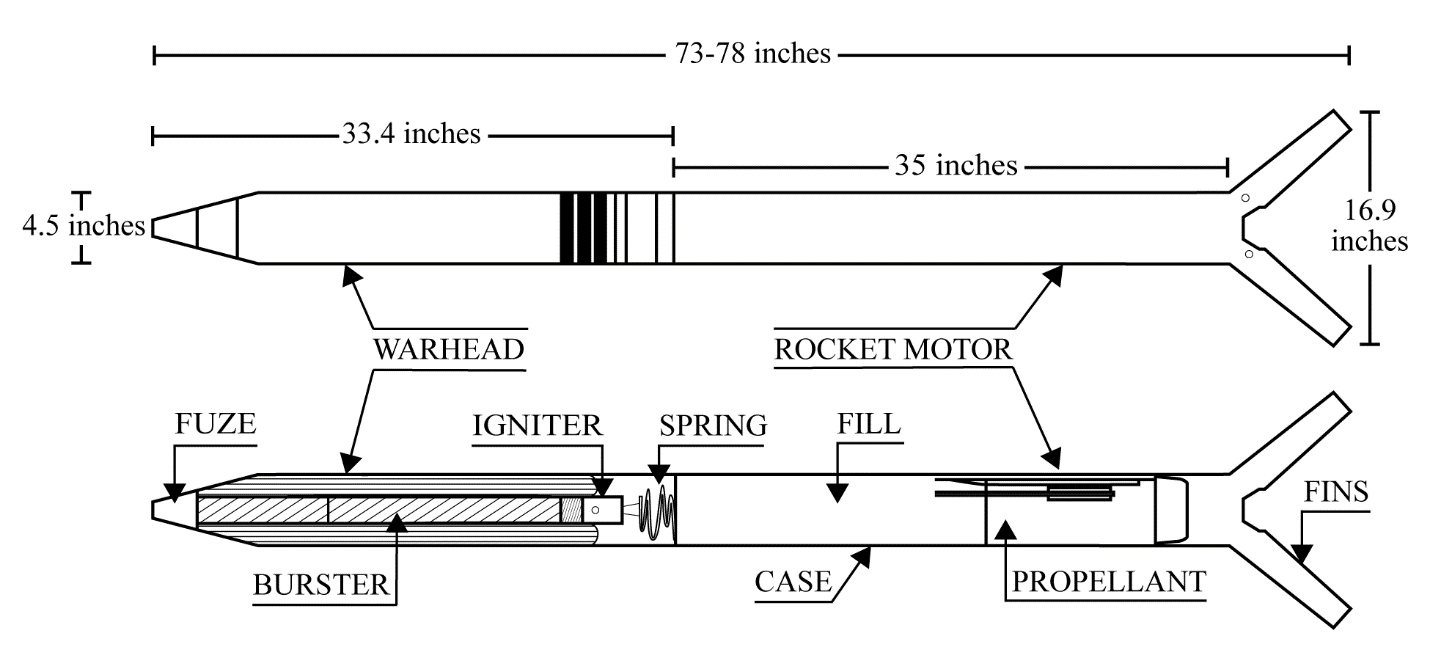

The M55 rocket has two main compartments; the warhead (M56) and the rocket motor (M67). The cross section view shows the M55 Rocket in its unpackaged configuration. The warhead contains either agent GB or VX, a point detonation fuze M417, an M36 auxiliary burster, and an M34 burster. The motor section consists of a double base propellant M28, an igniter assembly and a tail fin assembly. The rocket is packed in a fiberglass M441 firing and shipping tube.
Functioning
No information about functioning.
Hazardous Components
No information about hazardous components.
See Also
Nothing else to see.
Source(s)
Old Chemical Weapons and Related Materiel Reference Guide (2018)
Old Chemical Weapons Reference Guide (1998)
TM 9-1385-51, Ammunition (Conventional) for Explosive Ordnance Disposal (1967)
