Description

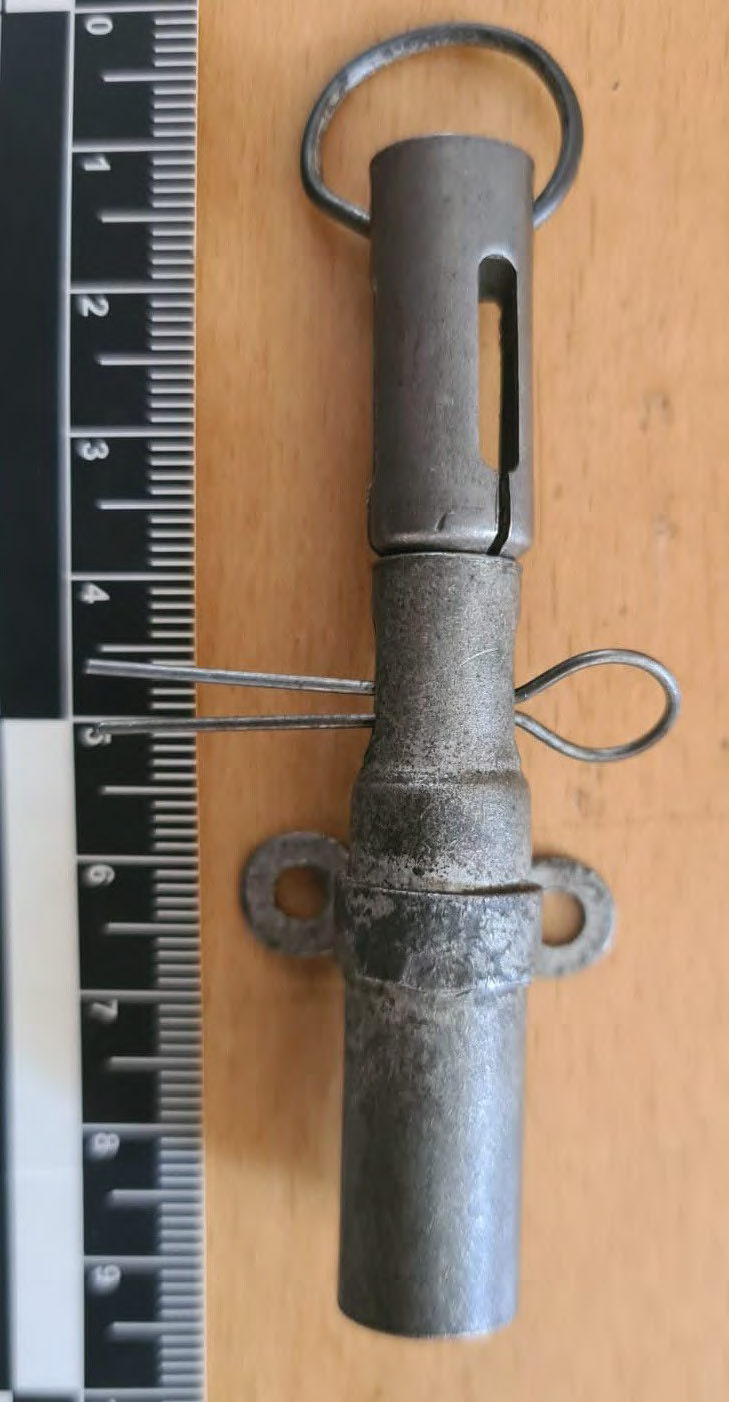

This fuze is an instantaneous, mechanical, spring-loaded striker type with a clasp-end release. It is a metal fuze consisting of a cylindrical, metal, spring-loaded striker housing with a circular metal holder soldered to the housing. A safety pin holds the striker in the cocked position. The end of the striker is ball-shaped and projects above the striker housing. A hollow, cylindrical metal striker- retaining clamp with flexible prongs grips the ball-shaped portion of the striker so that, when the safety pin is removed, the striker is still prevented from moving. A pull ring is attached to the top of the clamp. The bottom of the fuze is threaded to receive an MD 2 detonator assembly.
This fuze is used with improvised mines of all types, on land or in water.
Functioning
Lateral pull or pressure of about 3 pounds, or axial pull of about 9 pounds, on the pull ring attached to the clamp pulls the clamp off the ball-shaped end of the striker and releases it against the percussion cap.
Hazardous Components
No information about hazardous components.
Physical Data
No additional physical data available.
See Also
Nothing else to see.
