Description

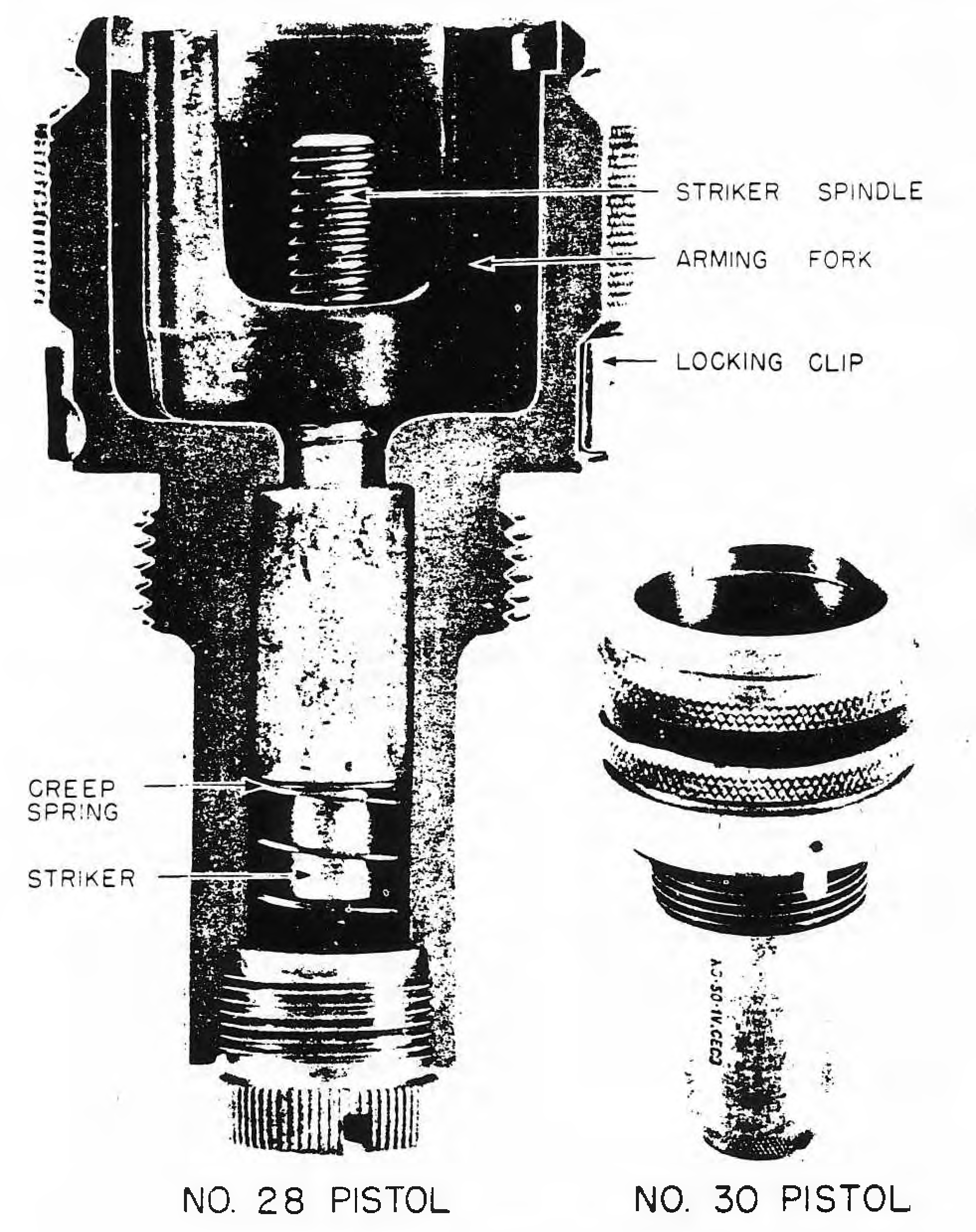

The Pistols No. 28 and No. 30 consist principally of a body with 1.1-in. standard threads, a striker threaded at the top end to take the arming fork, and a creep spring to prevent the striker from hitting the detonator until impact. The creep spring is housed in a creep spring holder, which threads into the bottom of the pistol body. A tab locking device for securing the pistol in the bomb is fitted around the body just below the knurled section, and a washer is fitted just above the body threads. Until placed in the bomb, the arming fork is prevented from rotating by a safety plate resting on two narrow recesses inside the upper part of the body, and extending between the arming fork arms.
When issued, the pistols are covered at the top by a press-cap and overseal. A guide pin, threaded into the side of the lower body extension, engages in one of two grooves in the striker and prevents it from rotating.
The Pistol No. 28 has a 5/8 inch knurled surface around the upper part of the pistol body. The Pistol No. 30 has the same type of knurled surface with a 1/4 inch green groove in the center of the knurled portion. The Pistol No. 28 has a blunt striker, while the No. 30 has a needle type striker.
The Pistol No. 30, though originally intended primarily for use in the A.S. bombs, is gradually replacing the No. 28 in other types of bombs in which a sensitive-type tail initiation might be required. The No. 30 is now considered the standard British tail pistol.
No. 28 Mk II* is a converted Mk II, which is obsolete, and the Mk III is of new manufacture. The Mk IV is of similar construction, but the body, safety plate, and creep spring holder are of molded plastic material. Also in the Mk IV an internal projection in the central bore replaces the guide pin of the earlier marks. Pistols No. 30 Mk III* and Mk IV are similar to the Pistols No. 28 Mk II* and Mk III, except that the striker has a long, sharp point and the knurled section of the body has a green groove around it.
The Pistol No. 65 Mk I resembles the Pistol No. 28 externally, while internally it differs from it by having a sharp, sensitive striker and a different type arming assembly. The arming assembly consists of an arming screw, pinned securely to the arming fork, and screwed into a threaded central hole in the after end of the striker.
Functioning
No information about functioning.
See Also
Pistol, Tail, No. 37 Mk 4, No. 37 Mk 4*, No. 37 Mk 4**, No. 37 Mk 5, No. 37 Mk 5*, No. 37 Mk 6
Source(s)
OP 1665, British Explosive Ordnance (1946)
