Description

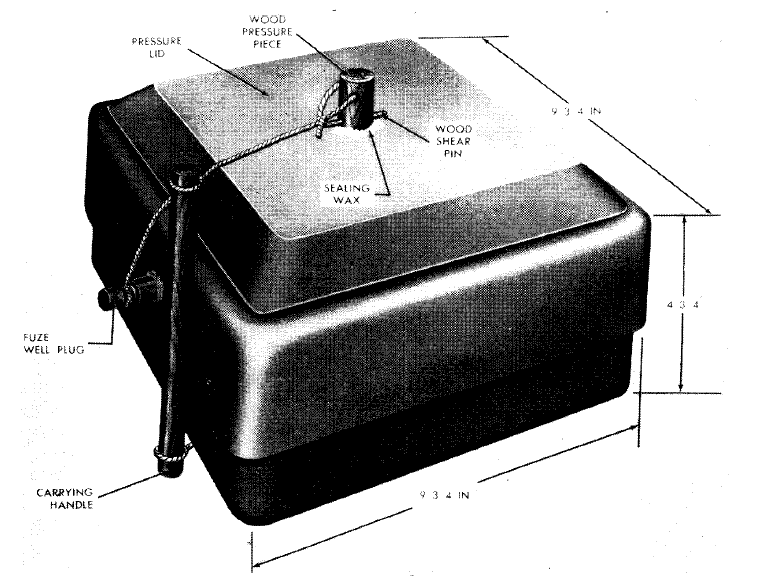

The asbestos antitank mine consists of a waterproofed asbestos case containing 7 pounds of powdered ammonium nitrate with a 200-gram TNT block booster charge, a wood pressure piece, and a fuze-actuating lever which actuates an MUV pull fuze. The case is 9 3/4 inches square and 4 3/4 inches high. Total weight of the mine is 12.5 pounds. The joints and openings of the mine are closed with sealing wax and the entire mine has a water repellent coating. The wooden handle is tied by rope to the pressure piece and fuze-supporting plug. A cord is tied to the fuze-well plug and to the wooden handle to prevent loss of the plug during transport.
This mine is used in antitank mine fields and road blocks. It may be actuated by a running man.
Functioning
Pressure of less than 200 pounds on the pressure piece or on the lid depresses the cover and rotates the fuze-actuating lever, pulling the striker-retaining pin from the fuze and firing the mine.
Hazardous Components
Filler - Powdered ammonium nitrante, 7 lbs (3.18 kg)
Booster - TNT, 7.14 oz (200 gr)
Physical Data
Length - 9.75 in. (248 mm)
Width - 9.75 in. (248 mm)
Height - 4.75 in. (121 mm)
See Also
