Description

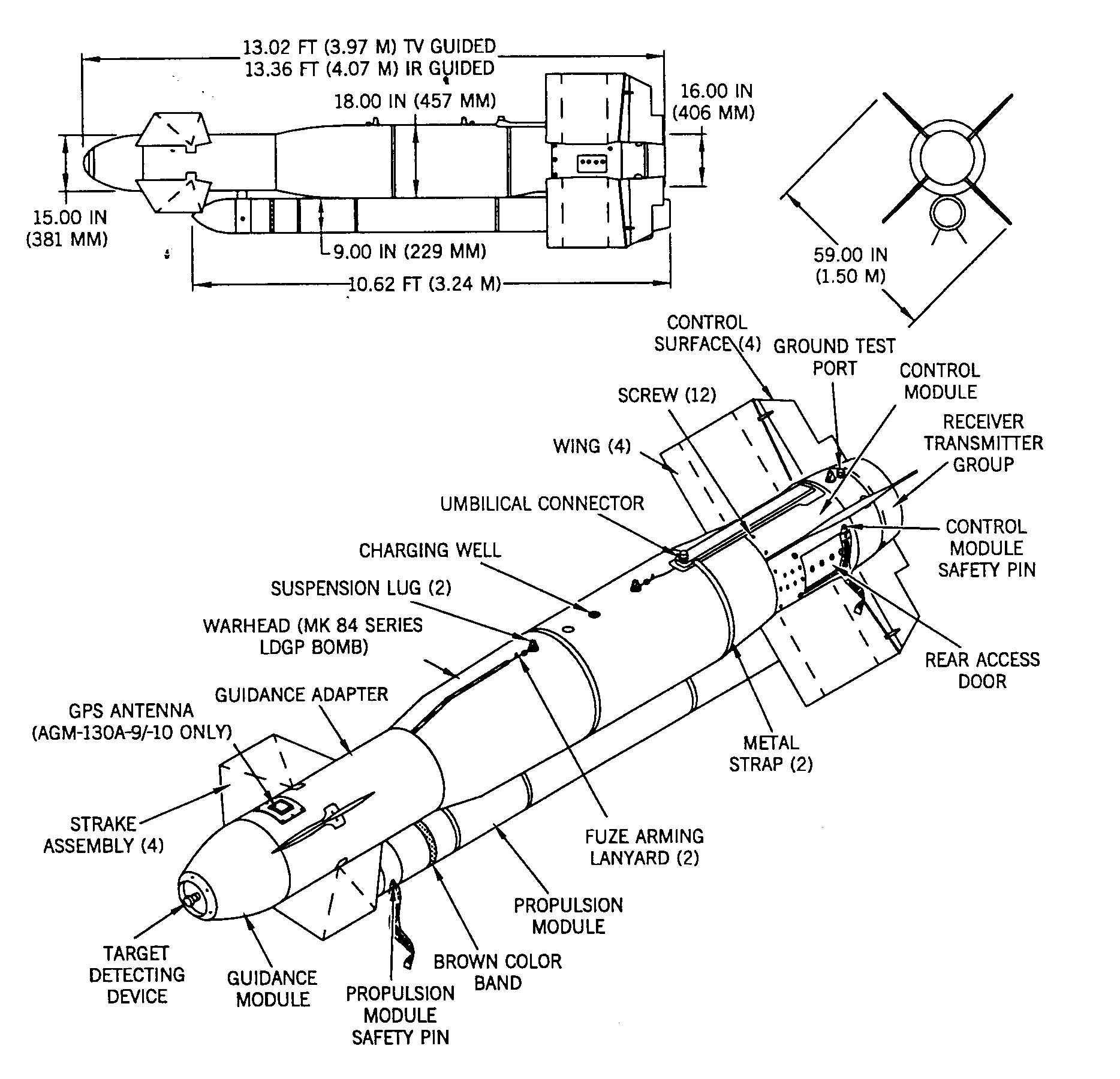

These are air-to-surface, rocket assisted, infrared (IR) or television (TV) module guided tactical missiles.
The AGM-130A warhead is a standardMk 84 series low drag general purpose (LDGP) bomb without a nose plug. When an FMU-124 series fuze is installed in both the nose and tail fuze cavities, an ADU-421A/B fuze adapter is installed in the charging well to electrically connect the fuzes.
The missile is painted olive drab. Identification decals and instruction markings are in black. The propulsion module has a 2.00-inch (51-millimeter)-wide brown band painted around the forward and the aft sections. Nomenclature and loading data are contained on a decal on the center of the module.
Functioning
No information about functioning.
Hazardous Components
No information about hazardous components.
See Also
Nose/Tail, Impact, FMU-124A/B, FMU-124B/B, FMU-124C/B
Source(s)
Afghanistan Ordnance ID Guide, Volume 1 (2004)
