Description
This element is a delay, chemical-electrical type fuze containing a spring-loaded striker with a chemical release. Internally, it is similar to the EKhV fuze. It is housed in a cylindrical tar impregnated cardboard container. Two electric lead wires project from one end of the fuze. One green-covered wire and one red-covered wire project from the other end of the fuze. There are two sizes of this fuze. The larger size is 5 inches in length and 1 3/8 inches in diameter, while the smaller size is 2 inches in length and 5/8 inch in diameter.
This fuze is used as a safety delay element in any electric detonating circuit for providing delay from 10 minutes to 4 hours with the smaller fuze and up to 4 months with the larger fuze (temperature affects the delay, the lower the temperature the longer the delay). The fuze is employed in the MZD-4 delayed-action mine.
Functioning

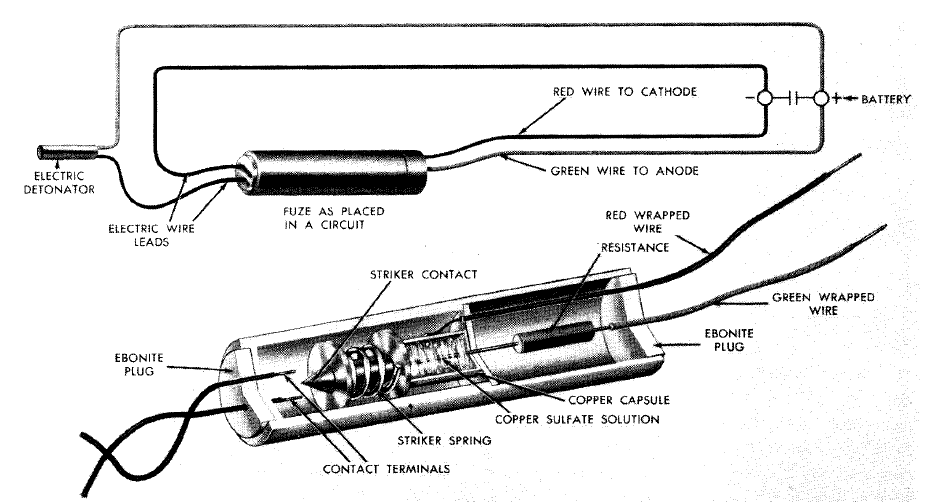

When connected to a battery in an electric detonating circuit as shown in figure 40, electrolysis begins. After a time lapse, the striker-retaining wire is eroded, thus releasing the striker and closing the circuit.
Hazardous Components
No information about hazardous components.
Physical Data
No additional physical data available.
See Also
Landmine, Delayed Action, MZD-4
