British Bomb, 500 lb Chemical, Mk 1, Mk 2

Scroll Prev Top Next More



1394-097

Description

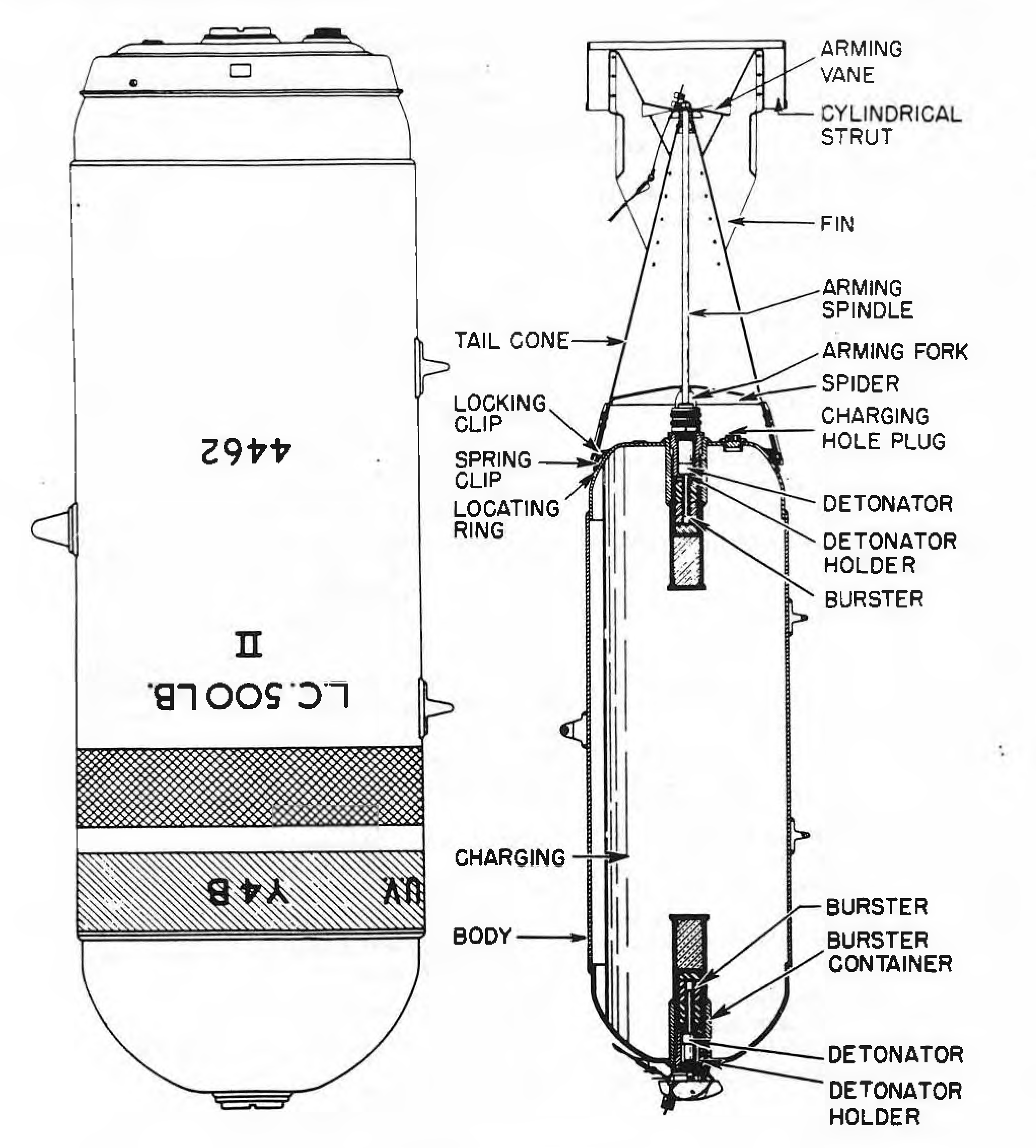

The 500 pound bomb was of conventional appearance but it was not of the tail ejection type. It had two bursters (one in the nose and one in the tail), which fragmented the case. When filled with mustard gas it was intended to air burst by means of a barometric or M111 clockwork fuze, thereby discharging its contents in the form of a spray.

The difference between the Mark I and Mark II bombs was the method of securing the burster containers in the bomb. Both the Mark I and Mark II bombs could be filled with phosgene but only the Mark I was filled with mustard.

Functioning

No information about functioning.

Hazardous Components

No information about hazardous components.

See Also

Nothing else to see.

Source(s)

Old Chemical Weapons Reference Guide (1998)

OP 1665, British Explosive Ordnance (1946)
