Description

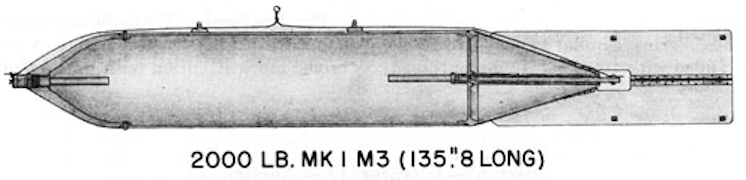

Cast steel nose riveted to seamless steel tubing; rear not tapered.
Four vanes riveted to tail cone; two sets of external bar struts to reinforce vanes; cone secured to flange on base plate.
Two U-shaped eyebolts on plates secured to body by cap screws.
Prior to March 11, 1942, these bombs would have been yellow all over with black manufacturers markings; but since that date will be olive drab with one inch yellow bands around nose and base and a 1/4 inch band around center of gravity.
Hazardous Components
Cast TNT (960 lb, 436.4 kg)
See Also
Nothing else to see.
Source(s)
OP 1664, Volume 2 - US Explosive Ordnance (1947)
USNBD - Bombs and Fuzes, Pyrotechnics (1945)
