Description

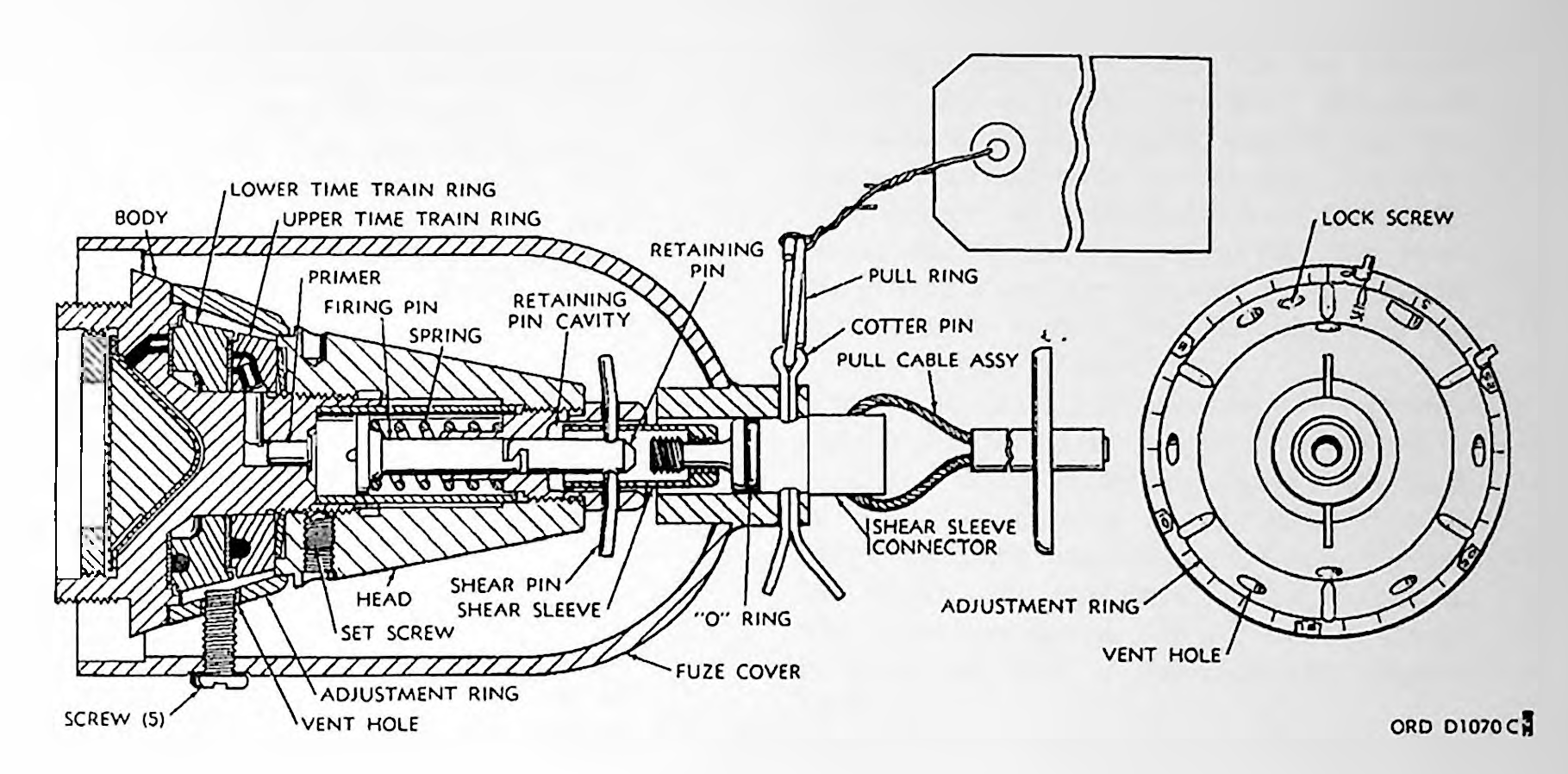

The fuze consists of a domed cylindrical fuze cover with a pull cable assembly, a shear sleeve connector, and a shear sleeve; a head that contains the firing pin assembly; and a body that contains a primer, upper and lower time train rings, and an expelling-ignition charge. The cover is attached to the fuze by five screws that thread through the fuze cover and into the lower time train ring
Functioning
No information about functioning.
See Also
Source(s)
MIL-HDBK-146, Fuze Catalog (1982)
TM 9-1385-51, Ammunition (Conventional) for Explosive Ordnance Disposal (1967)
