Description

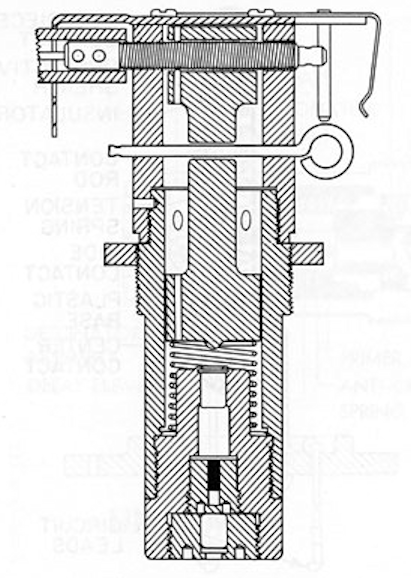

Very similar to the Tail Mechanical Impact Fuze M167, the T65E2 has a differently shaped plunger and is mounted by a different bracket. It uses the M100 type vanes and reduction gear arming, is of the "elbow" design because of its projected use in guided missiles, and employs the Primer Detonator M14 with the interchangeable delays.
Functioning
No information about functioning.
See Also
Nothing else to see.
Source(s)
OP 1664, Volume 2 - US Explosive Ordnance (1947)
