Description

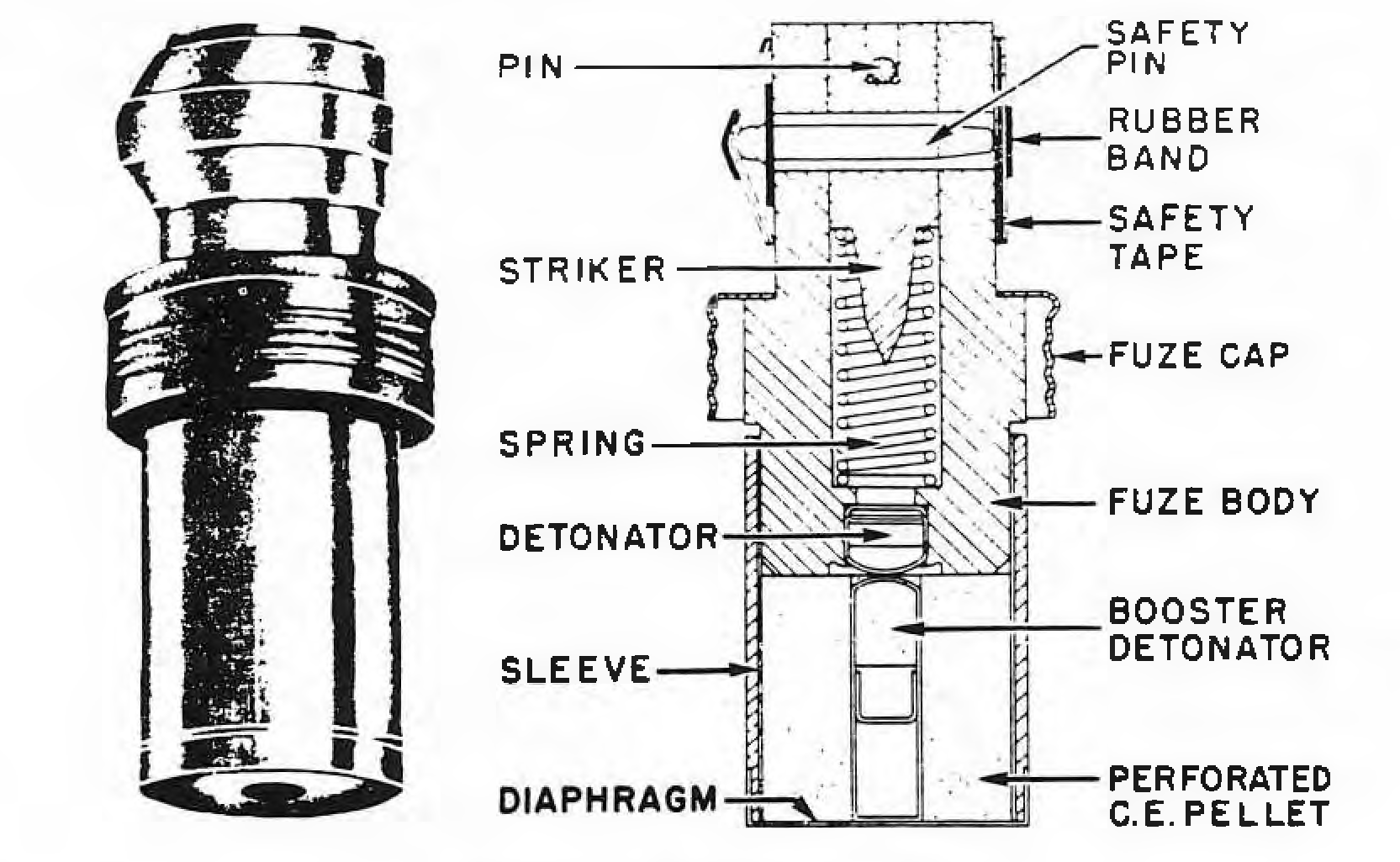

The fuze body houses a striker, a spring, and a 10-grain percussion detonator. The striker is held by the action of the spring against a pin riveted in the fuze body. A slot is provided in the striker for this pin. A safety pin passes through the striker and the fuze body. It is attached to a safety tape, which is wound around the fuze body and held in position by a rubber band. Secured to the fuze body is a sleeve, closed by a diaphragm. This sleeve houses a perforated No. 6 C.E. pellet. A booster detonator is housed in the C.E. pellet. Fixed to the fuze body is a screw-threaded fuze cap, to be screwed onto the locator in the bomb when the latter is fuzed.
Functioning
No information about functioning.
See Also
Nothing else to see.
Source(s)
OP 1665, British Explosive Ordnance (1946)
