Description

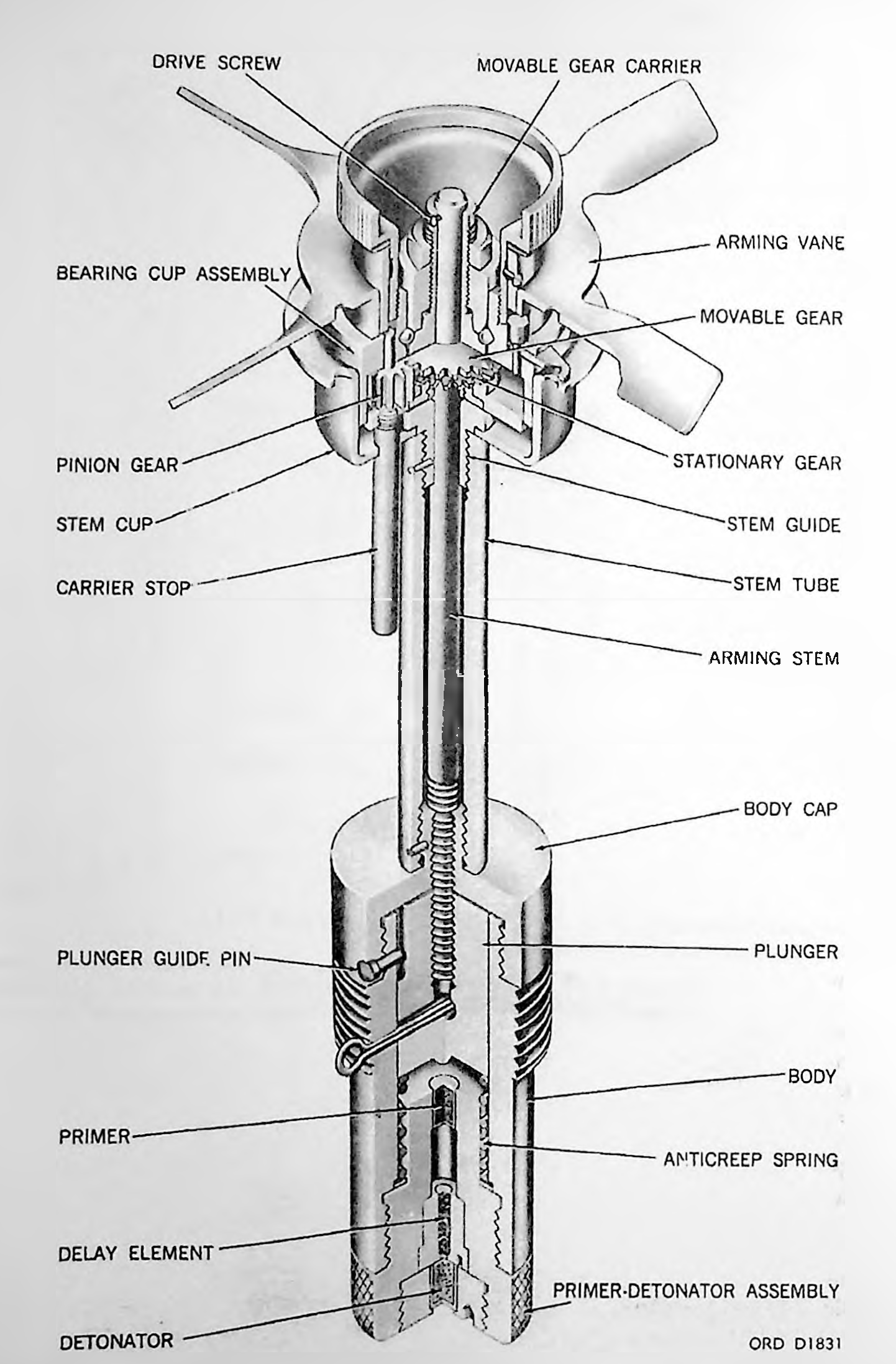

Tail fuzes of this type are vane armed and inertia fired. Arming is mechanically delayed by reduction gearing.
Hazardous Components
Primer detonator M14.
See Also
Nothing else to see.
Source(s)
MIL-HDBK-146, Fuze Catalog (1982)
TM 9-1385-51, Ammunition (Conventional) for Explosive Ordnance Disposal (1967)
TM 9-1325-200, Bombs and Bomb Components (1966)
OP 2216, Volume 1 - Aircraft Bombs, Fuzes, and Associated Components (1960)
