Description

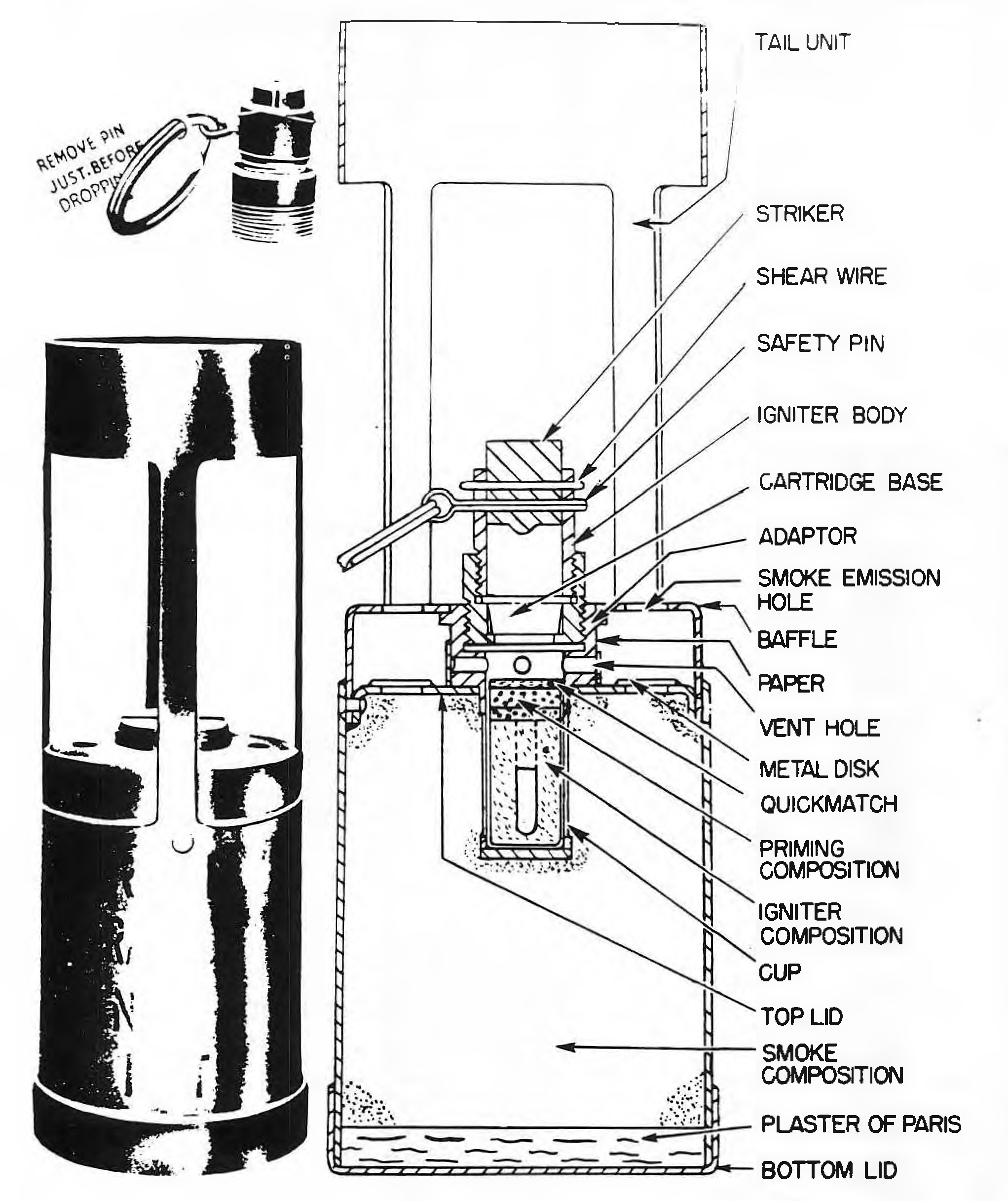

The generator consists of a cylindrical metal body containing smoke composition, a plugged adapter containing igniter composition in a metal foil cup, a quantity of priming composition, and a length of quickmatch. When prepared for use. a percussion igniter replaces the adapter plug. A tail unit is formed integrally with the body, and the upper end of the body is closed by a lid. The igniter consists of an igniter body, a striker supported above the cartridge base by a shear wire, and a safety pin. The cartridge base includes a small quantity of cap composition located between a percussion cap and an anvil.
This smoke generator is designed to be dropped from an aircraft to enable the pilot to ascertain the direction of the wind on the ground before making an emergency landing.
Functioning
No information about functioning.
See Also
Nothing else to see.
Source(s)
OP 1665, British Explosive Ordnance (1946)
