Description

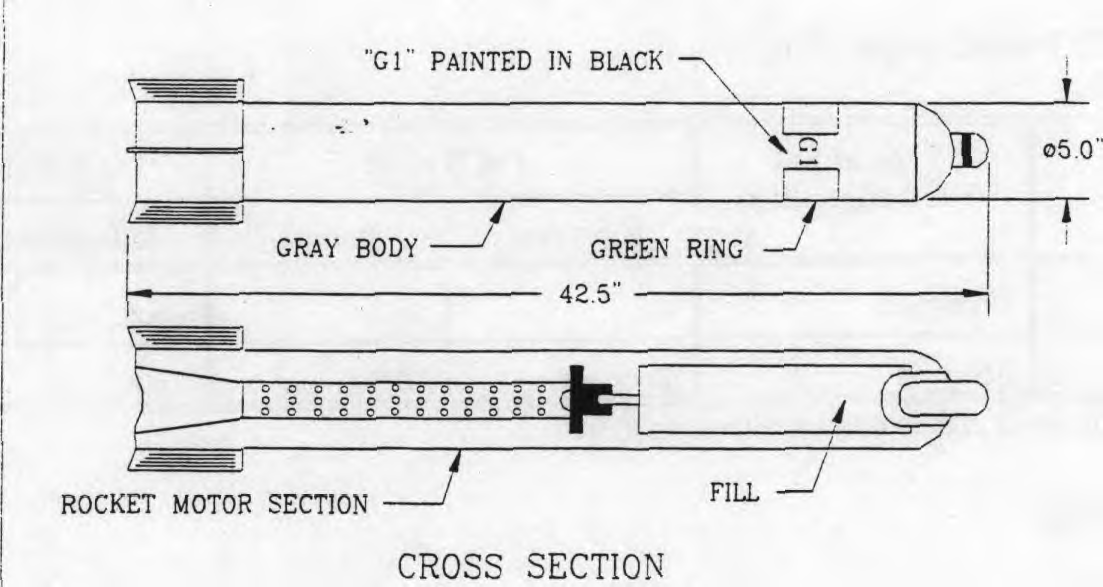

The 5 inch Chemical Rocket, Mk 1, was a modification of the 30-pound light case conventional aircraft bomb. It consisted of a steel tubular body fitted with a steel plate and a steel nose plug. The bomb body (rocket warhead) bursts on functioning, instead of the injection tail plate and contents as is the case with the MK 1 bomb. Most of the bomb bodies (warheads) were made from steel plate rolled to shape and lap- or butt-welded longitudinally, and not from a drawn- steel tube. The nose plug carried the burster container in which the No. 721 fuze was screwed.
Functioning
No information about functioning.
Hazardous Components
No information about hazardous components.
See Also
Nothing else to see.
Source(s)
Old Chemical Weapons Reference Guide (1998)
