Description

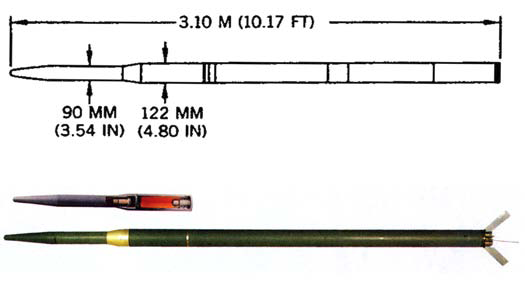

Figure shows the appearance and dimensions of the rocket. The rocket contains 4.50 kilograms (9.92 pounds) of RDX, wax, and aluminum (A-1X-2). It is believed to contain two base-detonating fuzes. The rocket has a tandem warhead. The forward warhead is a penetration warhead and the rear warhead appears to be a blast fragmentation warhead. Each warhead contains its own fuze located in the rear. The motor section is shown in the unfired condition with a cover concealing what is believed to be four folding fins similar to those found on earlier versions of the U.S. 2.75" rocket.
The rocket is gray with black markings.
Functioning
No information about functioning.
Hazardous Components
No information about hazardous components.
See Also
Source(s)
Afghanistan Ordnance ID Guide, Volume 1 (2004)
Iraq Ordnance Identification Guide (2004)
