Description
The motors are used by rotary-wing and other low-speed aircraft; they may also be used with high performance aircraft.

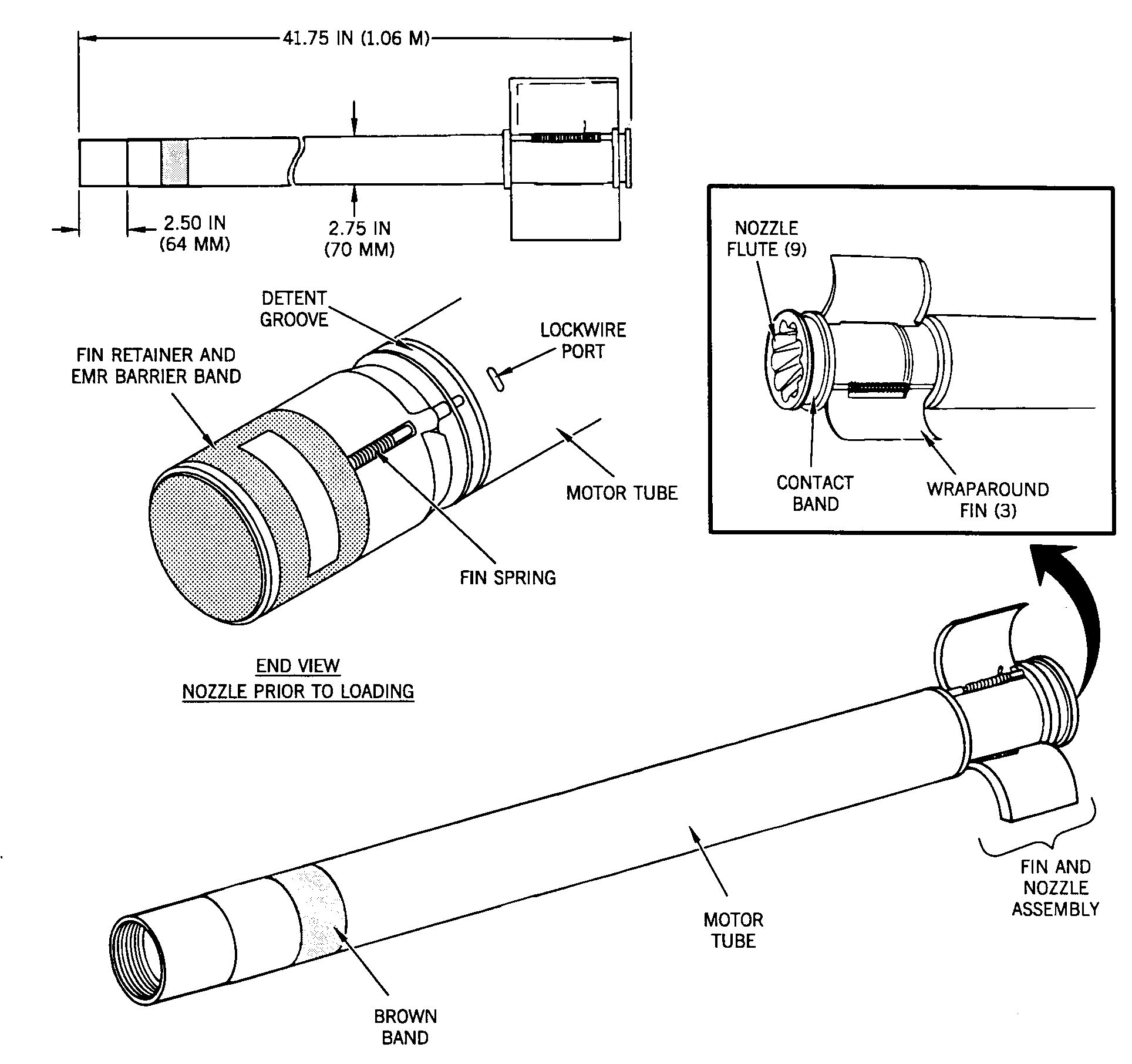

The MK66 motors utilize a longer motor tube (than the MK40) of a different aluminum alloy, and a new nozzle and fin assembly. The fins are of a spring loaded, wrap-around design and are attached around the circumference of the single nozzle. The propellant grain is longer and of a different formation than the standard grain; however, the stabilizing rod and igniter are essentially the same as used on the MK40 motor. The MK66 motors have a substantially higher thrust, 1300 lb, and a longer range. The MK66 Mod 0 was developed by the Navy but never fielded.
The MK66 Mod 1 motor is a nozzle modification of the Mod 0 to increase the spin rate from 4 - 5.5 rps to 9 - 10 rps (at launch) for increased accuracy and provide interface with existing and improved launchers. A detent groove has been added forward of the wrap-around fins.
The MK66 Mod 2 motor is the same as the Mod 1 motor except that it contains a Hazards of Electromagnetic Radiation to Ordnance (HERO) filter which allows it to be handled and stored in electromagnetic radiation environments.
The MK66 Mod 3 motor is physically and functionally the same as the Mod 1 motor except that it has a radio frequency (RF) filter in the firing circuit. The filter is physically located on the igniter can. It also has a metallic brass shield over the fin and nozzle assembly to shunt any arc formed during loading/unloading rockets into or from the launcher. The RF filter resists inadvertent firing by stray RF currents.
The MK66 Mod 4 motor is an improvement on the MK66 Mod 2 motor and is tri-service compatible. Changes include a new E3 filtering system located under the contact band, a new initiator, a new igniter, and a new stabilizing rod and attachment assembly. The new ignition mechanism reduces variations in ignition delay time. The bare MK66 Mod 4 motor is considered Hazards of Electromagnetic Radiation to Ordnance (HERO) safe without special precautions. The MK66 Mod 4 motor is also considered safe in Electrostatic Discharge (ESD) environments.
