Description

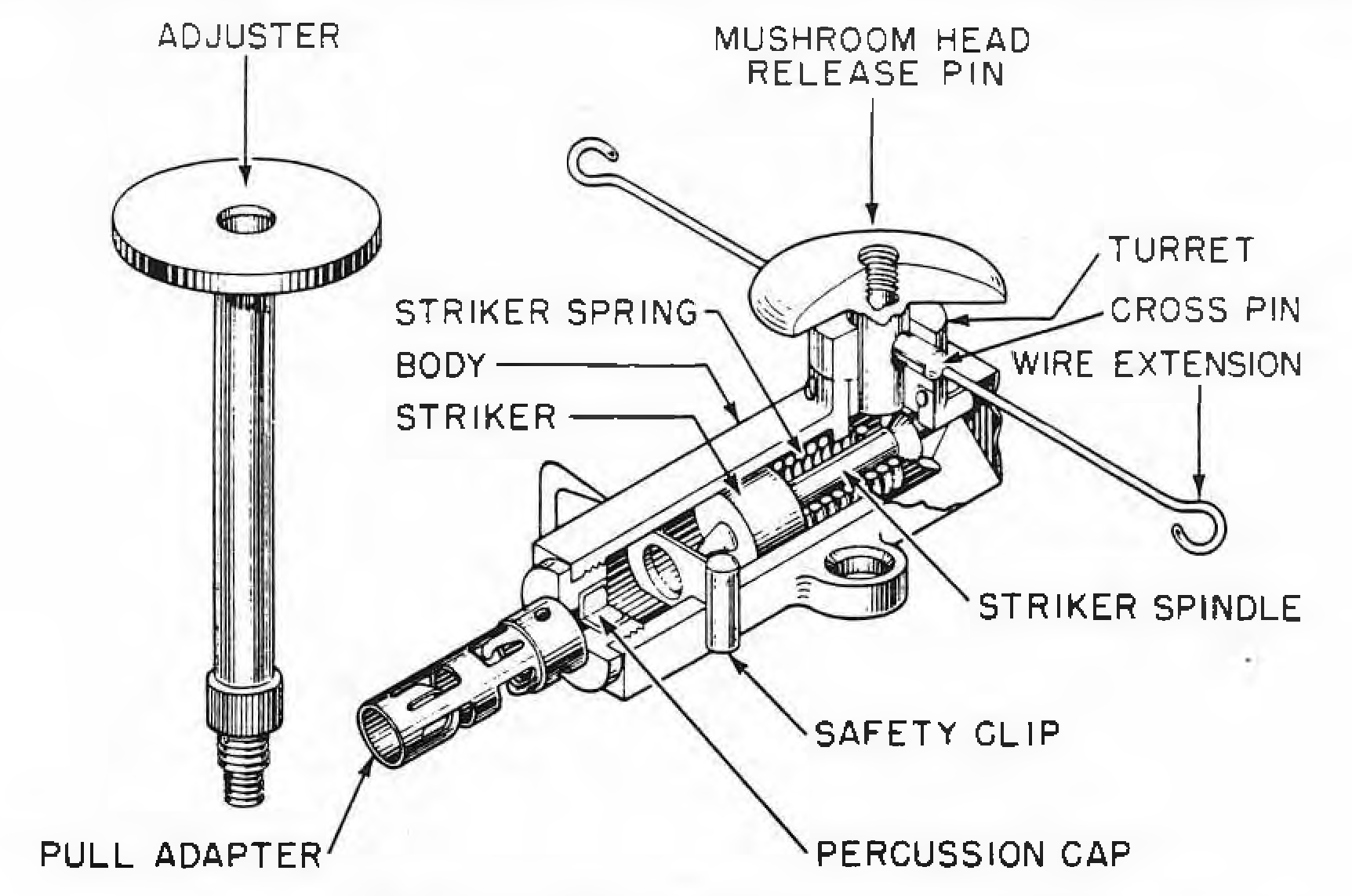

This is a rectangular fuze, containing a spring-loaded striker, an actuating pin pointed on the bottom with a pressure head on top, and a shear pin. The shear pin, with piano wire attached to either end, extends through the turret and the actuating pin. A fuze adapter or detonator adapter with a built-in percussion cap i3 screwed into the end of the fuze. The fuze also has a safety clip.
This fuze is employed as an antilift device or a boobytrap igniter.
Functioning
No information about functioning.
See Also
Nothing else to see.
Source(s)
TM 5-280, Foreign Mine Warfare Equipment (chg 1, 1971)
OP 1665, British Explosive Ordnance (1946)
