Description

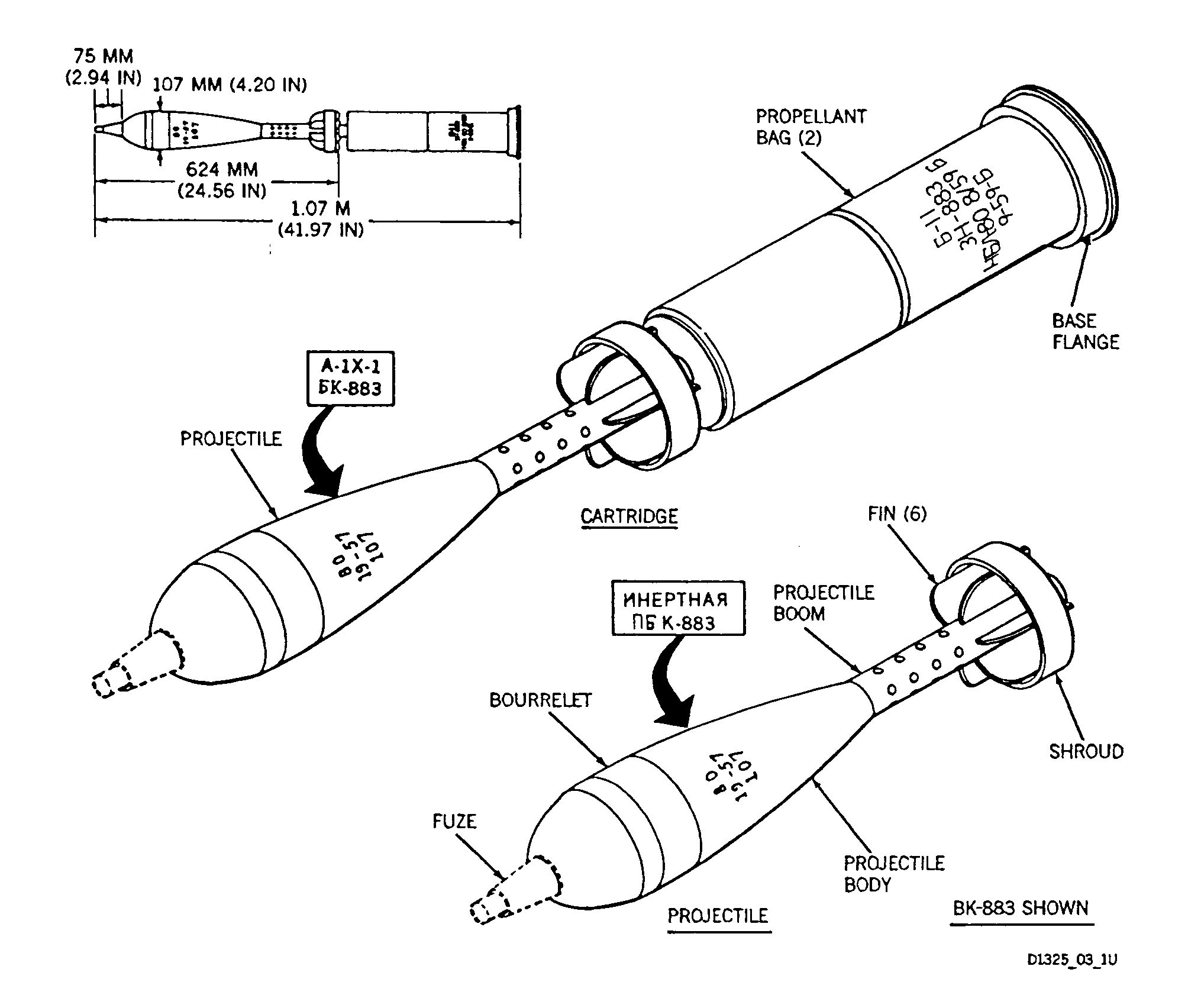

These are caseless complete round cartridges containing a fin-stabilized projectile. The BK-883 is a high explosive antitank with tracer (HEAT-T) projectile, which is contact fired by a point initiating base detonating (PIBD) fuze. The BK-883 cartridge weighs 12.5 kilograms (27.6 pounds) before firing; the fired projectile weighs 7.5 kilograms (16.5 pounds).
The BK-883 HEAT-T projectile body is painted olive drab with black stenciled markings. The bourrelet is unpainted and coated with a clear lacquer. Stenciled markings on the projectile are white; those on the propellant bags are black.
Functioning
No information about functioning.
Hazardous Components
No information about hazardous components.
See Also
Nothing else to see.
Source(s)
Iraq Ordnance Identification Guide (2004)
