Description

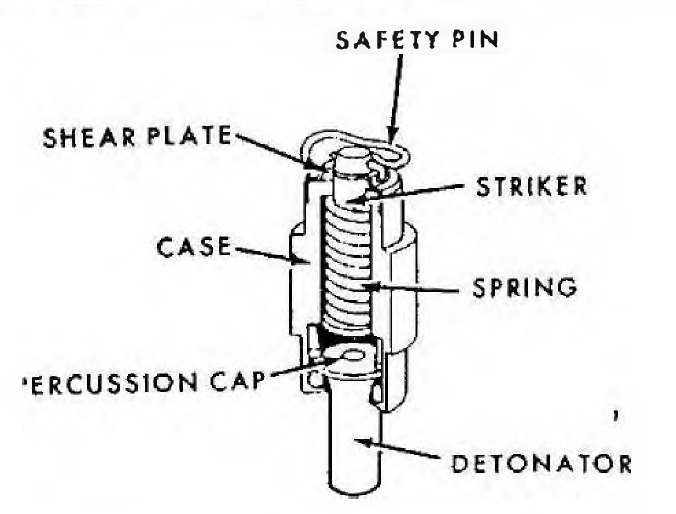

The fuze consists of a cylindrical metal case, a shear plate, and a spring-loaded striker. A percussion cap and detonator assembly are permanently attached to the fuze. A butterfly-type safety pin passes through and clips around the striker.
This fuze is used in the Model 49 light antitank mine.
Functioning
No information about functioning.
See Also
Nothing else to see.
Source(s)
TM 5-280, Foreign Mine Warfare Equipment (chg 1, 1971)
