Description

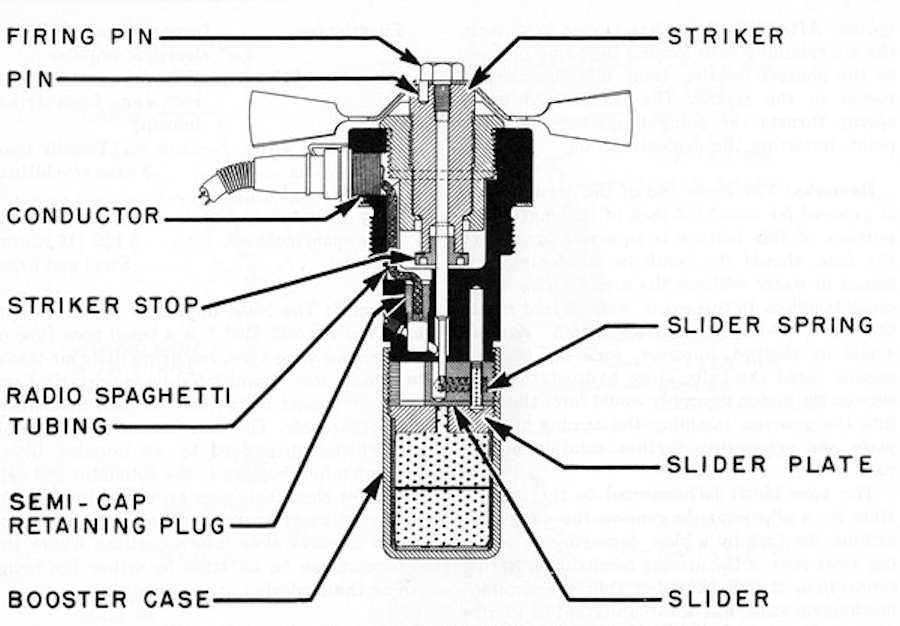

The Nose Impact or Electrical Firing Fuze Mk 232 Mod 1 is a bomb nose fuze of the arming-vane type, requiring little air travel to arm. It may be initiated by an electrical impulse or impact on a hard surface, detonating instantaneously. The fuze has an electric semicap which, when fired by an impulse, blows through a hole leading to the detonator and sets it off. For electrical firing as well as impact, the fuze must first be armed, allowing the detonator slider to move over into a position where the detonator can be initiated by either the tiring pin or the explosion of the semi-cap.
The fuze will not function on impact with water, but must strike a hard surface in order to strip the striker-housing threads.
No attempt should be made to unarm this fuze by rotating the vanes backward.
Functioning
No information about functioning.
Hazardous Components
No information about hazardous components.
See Also
Nothing else to see.
Source(s)
OP 1664, Volume 2 - US Explosive Ordnance (1947)
USNBD - Bombs and Fuzes, Pyrotechnics (1945)
