Description
The PMD-6M is a wooden version of a box or "shu" mine with a two-piece case. In the PMD-6M mines a metal clip has been added to the interior of the box to prevent direct pressure loading of the "T" pin on the fuze until it is stepped upon.
The lid section is hinged to the lower box at one end and is designed to close over the lower box. In the armed position, the lid rests on a striker retaining pin at the end of the fuze. When pressure is applied, the lid removes the pin, beginning the initiation process. Probing for small "shu" type mines with their low pressure thresholds is a very hazardous operation.
Functioning
No information about functioning.
Hazardous Components
NEW is 200 grams.

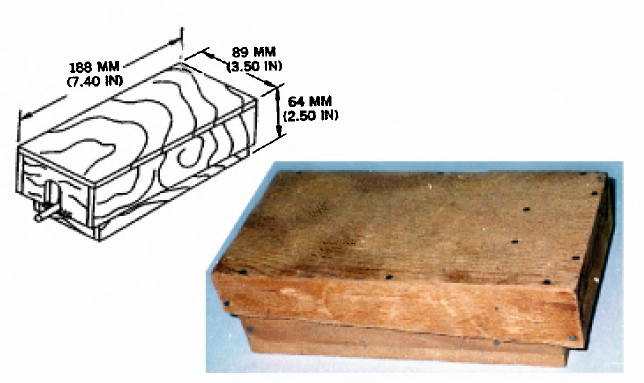

Physical Data
Length - 7.4 in (188 mm)
Width - 3.5 in (89 mm)
Height - 2.5 in (64 mm)
See Also
Source(s)
Afghanistan Ordnance ID Guide, Volume 1 (2004)
Iraq Ordnance Identification Guide (2004)
