Description
The M84 Stun Grenade is a pyrotechnic device for diversionary purposes. The Stun Grenade is a low hazard, non-shrapnel producing explosive device which produces an intense light and sound display with a minimum amount of smoke. It is a one-time use item.

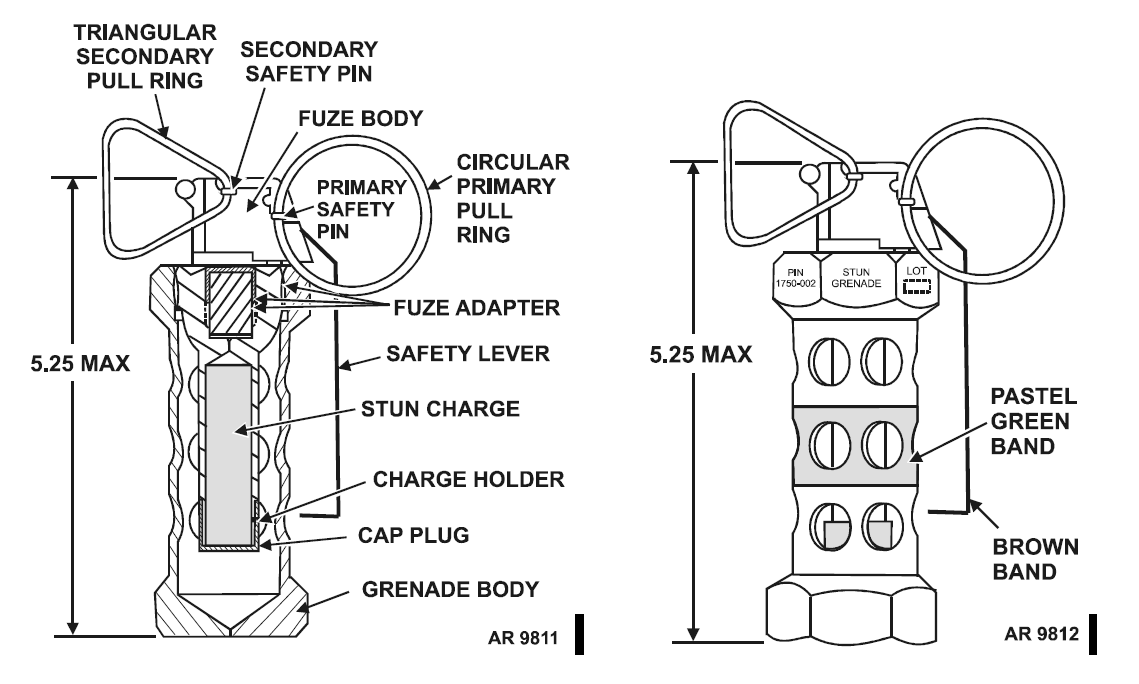

The M84 Stun Grenade is 5.25 inches in length and 1.73 inches at the corners of the hexagon location. The grenade design consists of a steel hexagon body and fuze adapter, fuze with primary and secondary safety pin assembly, a charge holder with a cap plug, the stun charge and epoxy sealant material. In addition, it consists of 12 vent holes, pastel green band around the middle of the body and a brown band on the tip end of the safety lever.
The charge assembly containing the stun charge is a stand-alone sealed assembly achieved by the application of epoxy material at the charge holder joint between the plug and the metal fuze adapter. The fuze is also sealed with epoxy at its thread location with the fuze adapter.
Functioning
No information about functioning.
Hazardous Components
No information about hazardous components.
See Also
Nothing else to see.
Source(s)
TM 43-0001-29, Grenades (chg 4, 2002)
