Description

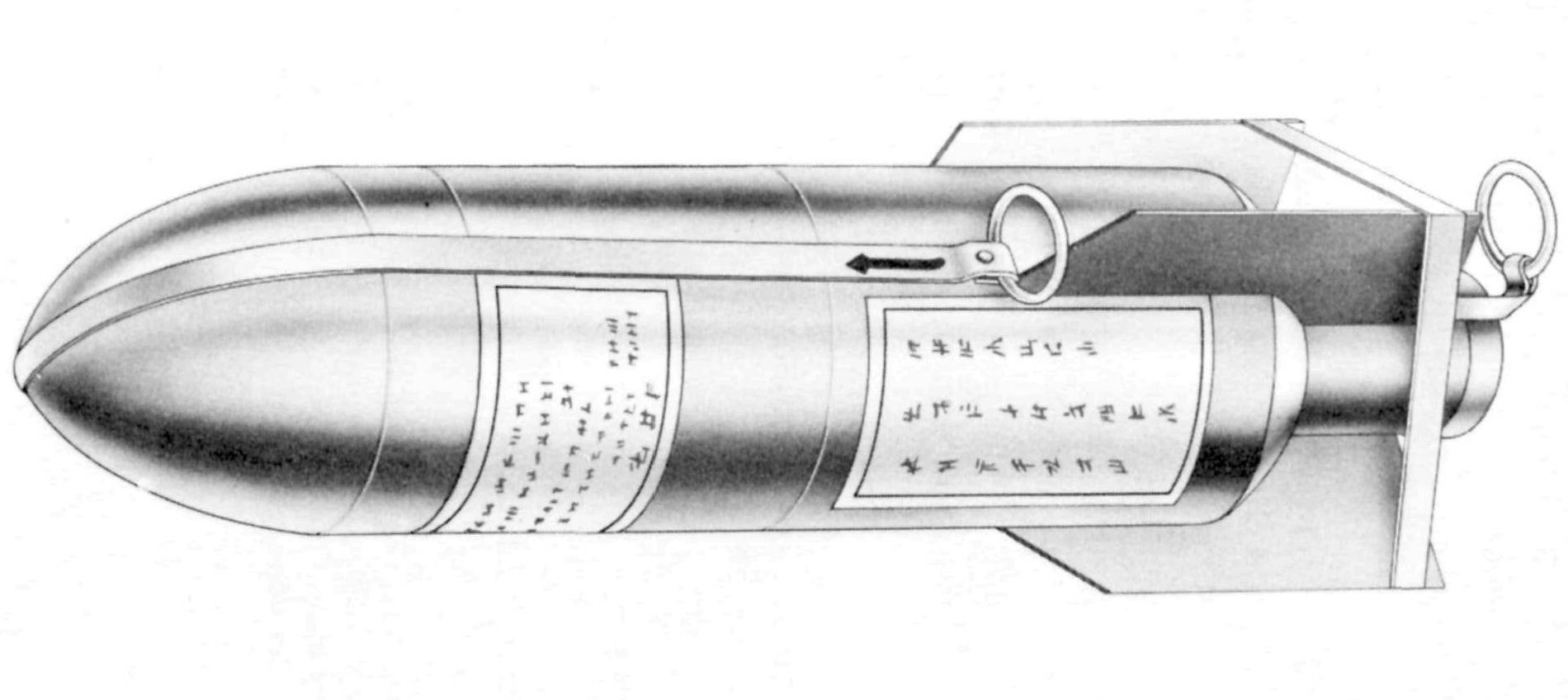

Grey overall with two labels pasted on body.
The body is constructed of tin plate rolled into a cylinder with soldered lapped joints. The ogival nose piece and conical tail piece are soldered to the body. The nose piece houses a lead weight. The calcium carbide is contained in the forward part of the body, the calcium phosphide in the after part. Two metal tear strips cover water inlet holes in the nose and tail.
Four tail fins are soldered to the body and tail cone and are braced by a single set of box type struts.
The Type 0 Model 1 float light has a deflector on the exterior of the nose piece which prevents it from penetrating too deeply into the water.
Hazardous Components
Filler - Calcium carbide and calcium phosphide.
