Description
Gray overall.

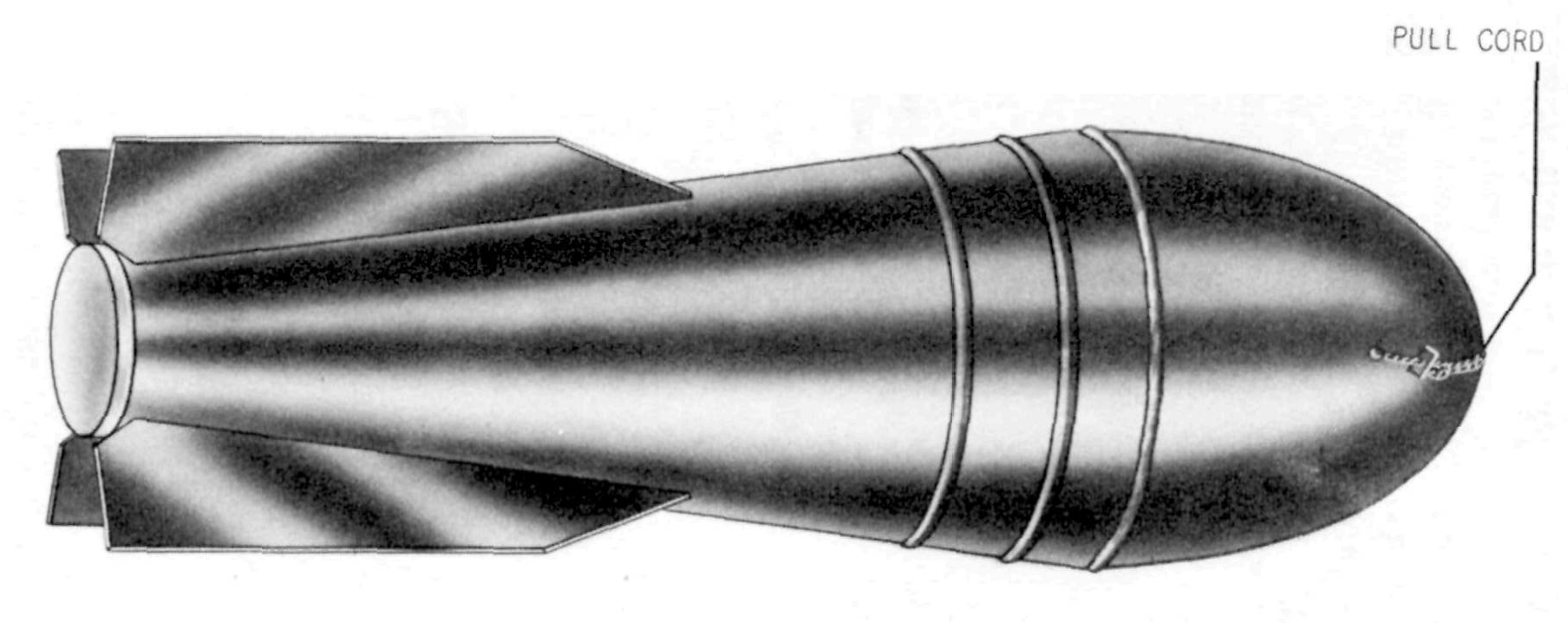

A brass nosepiece, ogival in shape is brazed to a conical body. A brass plug screws into the nose of the flare. It is threaded internally to hold a central tube containing the pull igniter, delay train, and illuminant. The after end of the flare is closed by a lead cap.
Four fins are soldered to the after end of the body.
Hazardous Components
Pull igniter fuze.
Illuminant (1 lb, 0.45 kg)
