British Flare, 7 inch Hooded Reconnaissance, No. 1 Mk 1, No. 2 Mk 1, No. 3 Mk 1, No. 4 Mk 1 |
Scroll Prev Top Next More |
Description

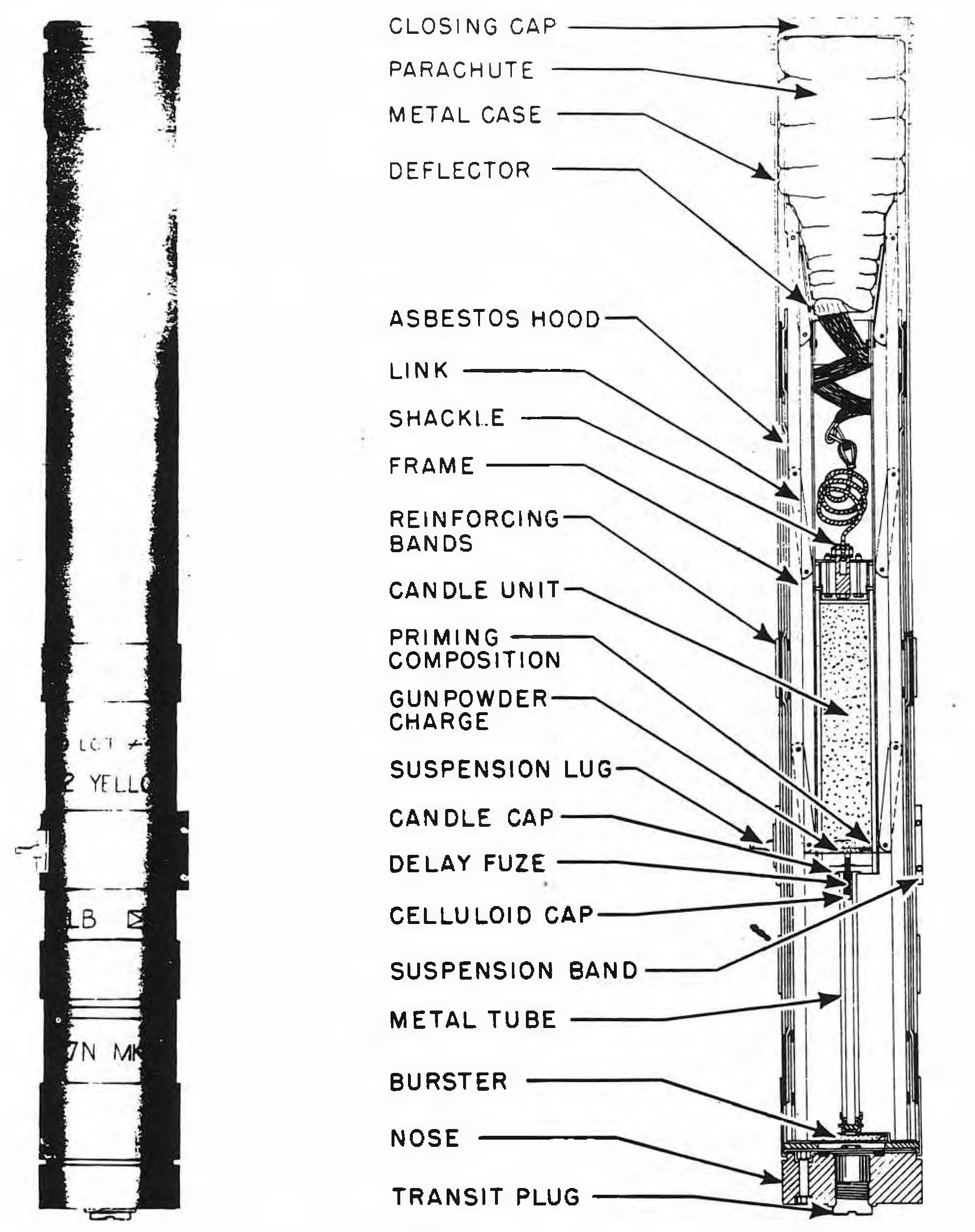

The Flare No. 1 consists of a flare-candle unit contained in a thin metal case, which is fitted with a heavy nose, and closed at the tail end by a metal closing cap. Housed in the rear of the casing is the parachute attached by the shackle to the candle unit. A metal tube containing a primed cambric tube connects the powder puff in the nose of the flare with the candle cap. A length of safety fuse, sealed at each end with a celluloid cap containing a small gunpowder charge, passes through the candle cap to the gunpowder charge contained in the nose of the candle. Attached to the side of the candle unit is a frame to which is fixed the sheet asbestos hood which directs the light downward and shields the eyes of the bombardier from the glare. The form, which folds around the candle unit, has a square cross section when open and extends beyond the ends of the candle unit. The tail end of the hood is partially closed by a deflector.
In the Flare No. 2, the heavy nose and the suspension band are omitted, thereby reducing the weight. The Flare No. 3 is the same as the No. 1 except that it incorporates a 2 1/2 minute delay; and the Flare No. 4 is also the same as the No. 1 except that it has three 14-ft. parachutes.
The Flare No. 1 is carried singly by a suspension lug on a band fastened around the body. Flares No. 2, 3, and 4 are carried in Cluster No. 3 Mk I, four flares in each cluster.
The Hooded Flares No. 2, 3, and 4 are each fuzed with a 5-sec. Delay Initiator No. C.5 Mk I. These initiators are ignited by the functioning of the cluster fuze to give simultaneous and individual initiation to each flare after the cluster has disintegrated.
Functioning
No information about functioning.
See Also
Nothing else to see.
Source(s)
OP 1665, British Explosive Ordnance (1946)
