Description
The Mk 15 Mod 0 "Sadeye" weapons system was used for delivery of small, tactical devices and bomblets by high-performance aircraft, equipped with single and multiple-carriage bomb racks; to include a toxic and biological offensive capability. The two halves of the dispenser were locked together by a nose locking ring and an end plate screwed to the aft end.

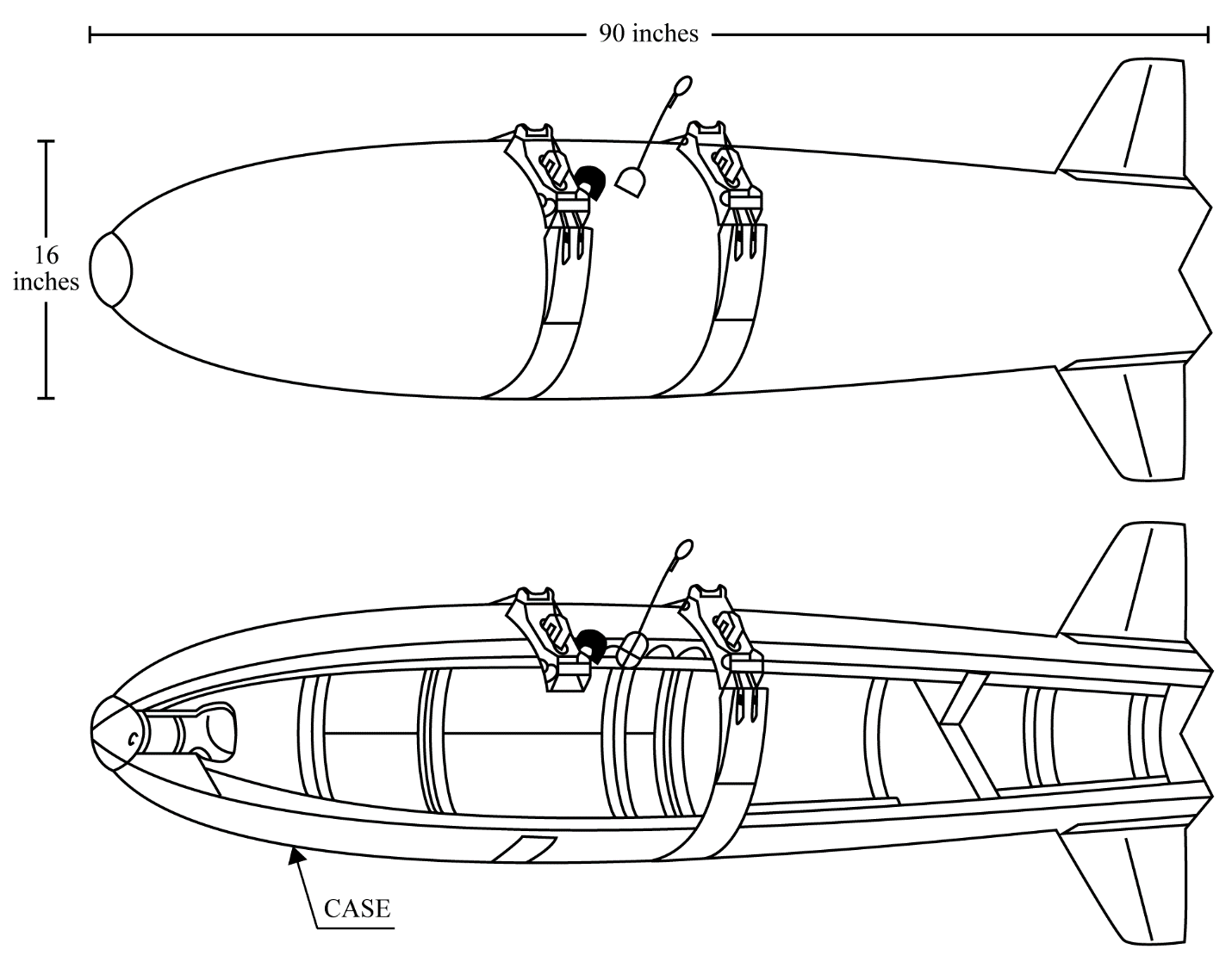

The Sadeye was a low-drag, cluster bomb that could be delivered by all modern, high performance aircraft, equipped with single and multiple-carriage bomb racks. The weapon consisted of a semi-monocoque, skin-stressed container in longitudinal half sections, which separated for dispersion of the payload. An aircraft locking mechanism; the burster charge, and the switching unit (safe separation and firing timer) were housed in the ogive fuze well. The two halves of the dispenser were locked together by a nose locking ring and an end plate screwed to the aft end.
Hazardous Components
No information about hazardous components.
See Also
Nothing else to see.
Source(s)
Old Chemical Weapons and Related Materiel Reference Guide (2018)
