Description

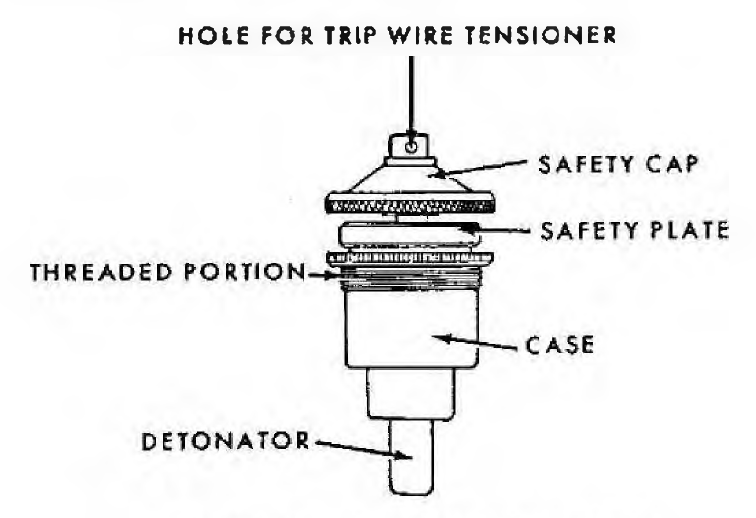

This fuze, like a tiltrod fuze, can be actuated either laterally (pull or release of tension), or axially (pressure or pull). The lower part of the fuze holds the detonator and percussion cap. The upper part of the fuze has a safety cap which is screwed down the striker shaft to hold the safety plate in place.
This fuze is used in Model 49 antipersonnel stake mines.
Functioning
No information about functioning.
See Also
Source(s)
TM 5-280, Foreign Mine Warfare Equipment (chg 1, 1971)
