Description
The Cluster Adapter Mk 3 Mod 0 is used to cluster three bombs for external suspension on V.B.F.-type aircraft. The purpose of this cluster is to increase the bomb load capacity of fighter planes. Five types of bombs may be used with this adapter.
Bombs |
Weight of Cluster (in pounds) |
361 |
|
300 |
|
688 |
|
800 |
|
3 — 100 pound Incendiary, AN-M47A2 |
340 |

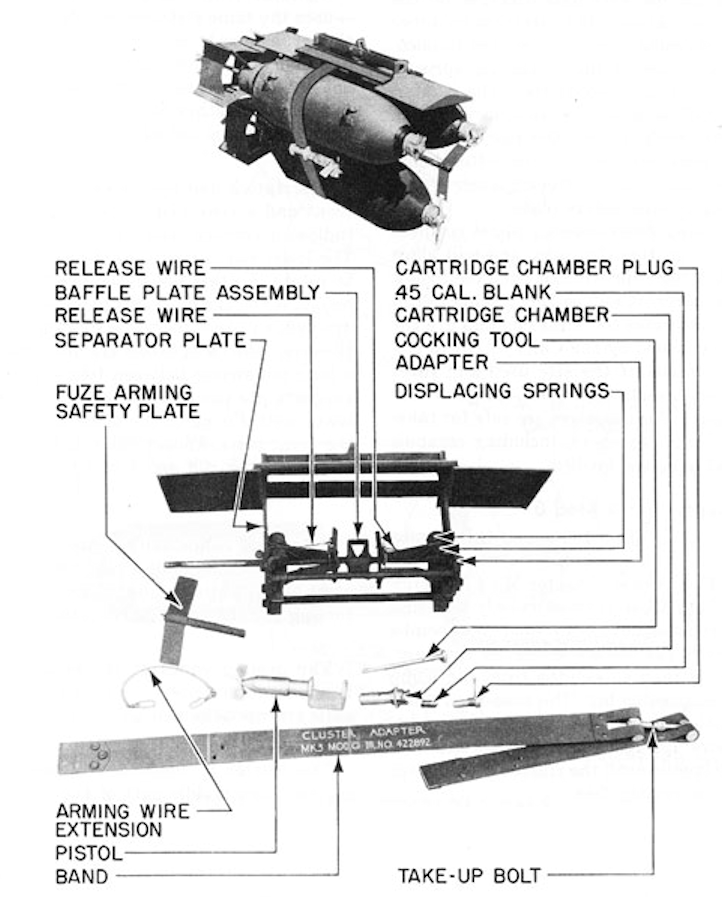

The adapter consists of a band incorporating a take-up bolt, a frame assembly, and a delay opening pistol assembly.
See Also
Bomb, 100 lb GP, AN-M30, AN-M30A1
Source(s)
OP 1664, Volume 2 - US Explosive Ordnance (1947)
