Description
This cartridge is used against light armor and similar targets.

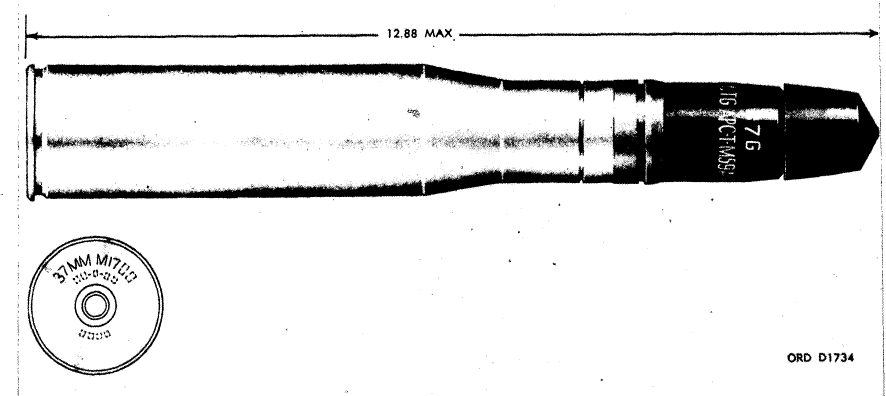

This cartridge is assembled with cartridge case M17 attached to the projectile by a circumferential crimp. A pointed steel armor-piercing cap which aids the projectile in defeat of face-hardened plate is crimped to the hard steel projectile body. There is no windshield and the body has a gently tapered nose. A small cavity in the base of the projectile holds a red tracer composition.
Hazardous Components
Primer M38A1 or M38A2
Propelling charge - M1 or M2 (0.31 lb, 0.14 kg)
See Also
Source(s)
TM 9-1300-203, Artillery Ammunition (1967)
