Description

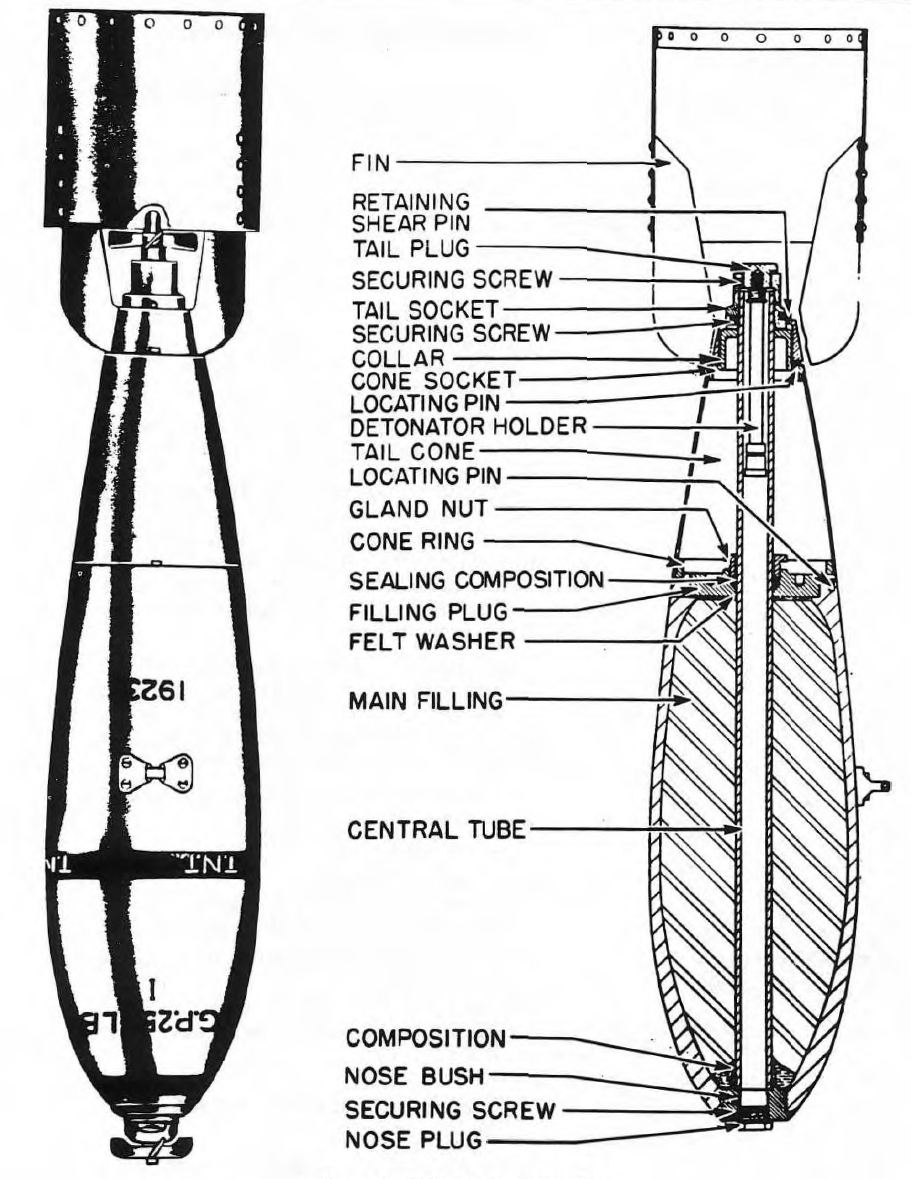

This bomb body consists of a streamlined steel casting or forging threaded at the nose to take a nose adapter, which holds the central exploder tube. At the other end of the casting is a threaded base plug through which the exploder tube passes. Welded to the end of the casting is a streamlined section of thin metal, containing no explosive, but tapered to take the tail ring. The exploder also passes through this section.
Four mild steel fins are fastened to a truncated cone, and are reinforced by a cylindrical strut. The cone fits over the rear section of the bomb body and is held to it by a lock nut over the exploder tube.
A single suspension lug is secured to the body by four screws.
Functioning
No information about functioning.
See Also
British Bombs - Designation and Classification
Source(s)
OP 1665, British Explosive Ordnance (1946)
