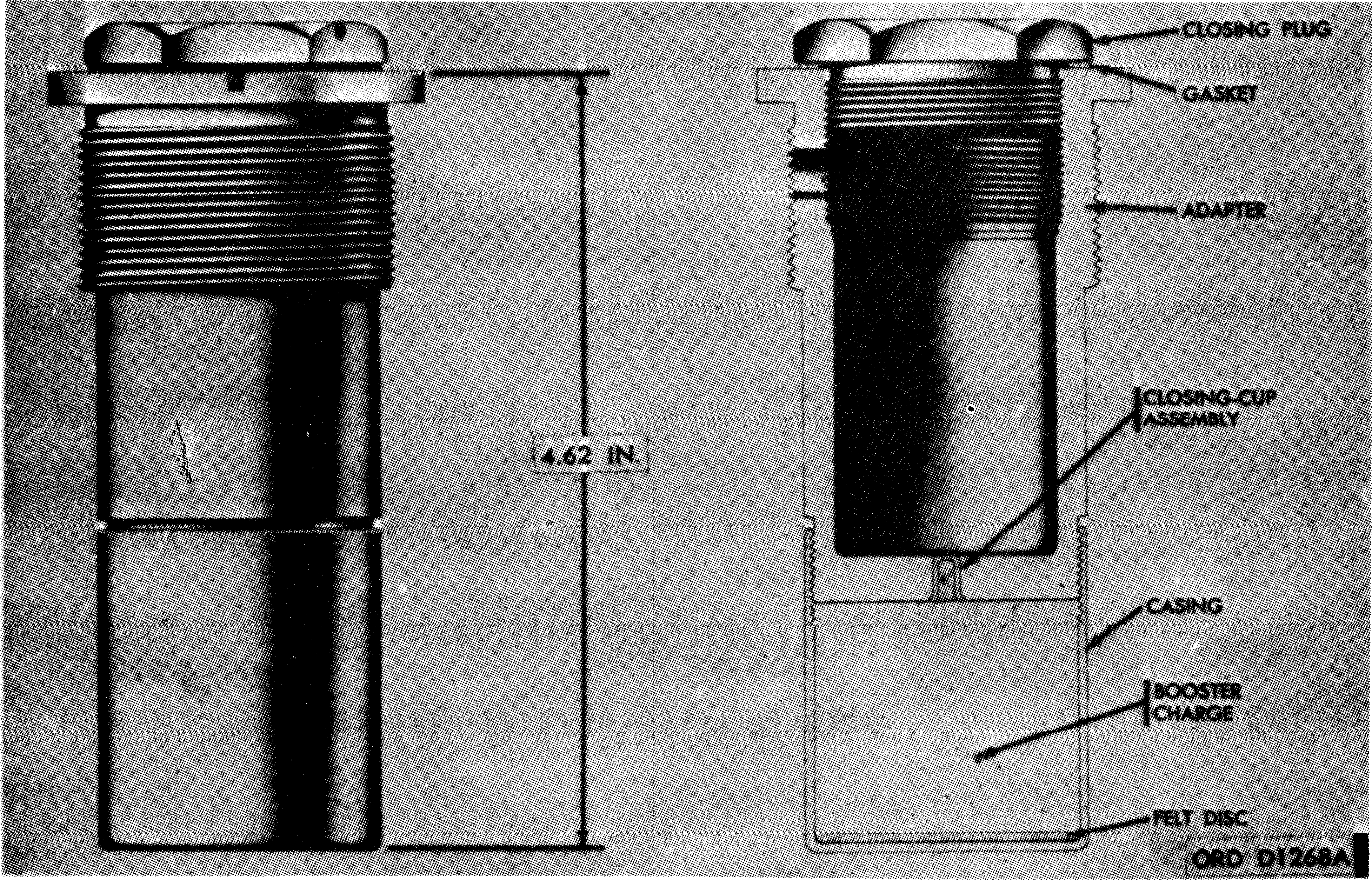

Adapter Booster, M102, M102A1

Scroll Prev Top Next More




Adapter booster M102A1 provides a tail fuze seat for certain GP and SAP bombs. It requires an adapter booster lock pin to prevent its removal after an antiwithdrawal fuze is inserted in the bomb. The required lock pin and a lock pin instruction card are wired to the fuze. The M102A1 has an inner diameter of 1.5 inches and its cavity is 2.86 inches deep.

The M102A1 differs from the earlier model of M102 in its provision for locking pins.


No information about functioning.

Hazardous Components

Tetryl closing cup assembly, Tetryl booster

See Also

Nothing else to see.


TM 9-1325-200, Bombs and Bomb Components (1966)

OP 2216, Volume 1 - Aircraft Bombs, Fuzes, and Associated Components (1960)

TM 9-1904, Ammunition Inspection Guide (1944)
